description

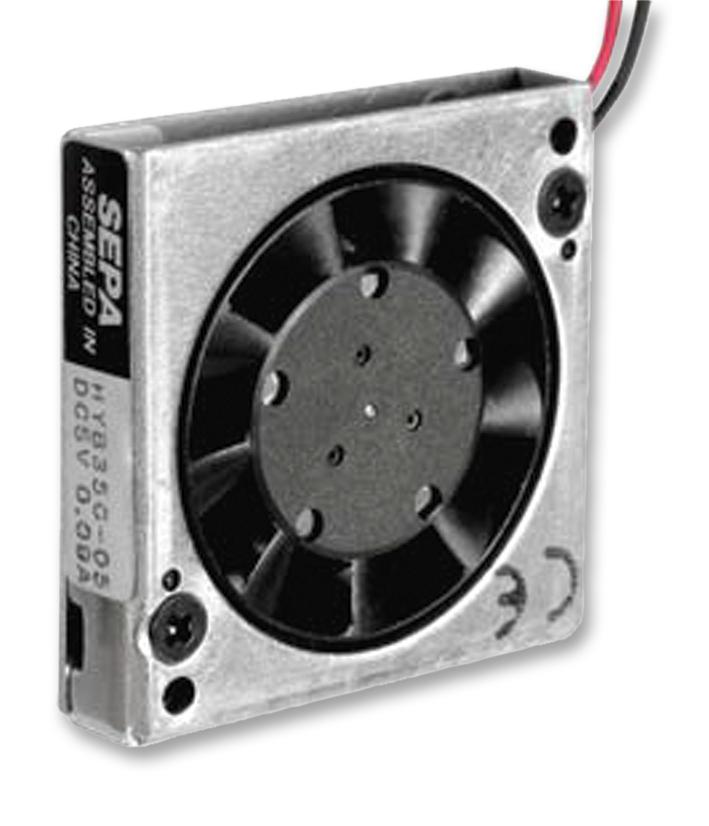

SEPA - HYB35C05 - DC Axial Fan, 5 V, Square, 35 mm, 7.5 mm, Ball Bearing, 0.95 CFM
- Supply Voltage: 5V
- Current Type: DC
- Fan Frame Size: 35mm
- External Depth: 7.5mm
- Noise Rating: 27dBA
- Flow Rate - Imperial: 0.95cu.ft/min
- Flow Rate - Metric: 1.62m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 80mA
- Product Range: HYB Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- External Height: 35mm
- External Width: 35mm
- Fixing Centres: 29mm
- Fixing Hole Diameter: 1.7mm
- Frame Dimensions: 35mm x 35mm x 7.5mm
- Lead Length: 150mm
- Operating Temperature Max: 60°C
- Operating Temperature Min: -10°C
- Pressure Max: 29Pa
- Supply Voltage DC Max: 5.5V
- Supply Voltage DC Min: 4.5V
- Thermal Resistance: 5.3W/m.K
