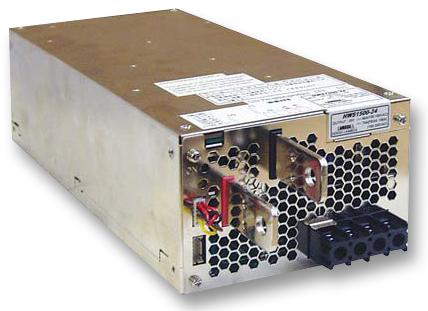

TDK-LAMBDA - HWS1000-48 - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 1.104kW, 85V AC to 265V AC, Adjustable, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): -
- Power Rating (Forced Cooling): 1.104kW
- Input Voltage VAC: 85V AC to 265V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 48V
- Output Current - Output 1: 22A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: HWS Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Industrial, Lighting, Telecom
- Approval Bodies: CE, CSA, EN, UL
- Efficiency: 88%
- External Depth: 82mm
- External Length / Height: 126.5mm
- External Width: 240mm
- Height: 126.5mm
- Hold Up Time: 20ms
- Input Frequency: 63Hz
- Input Voltage AC Max: 265V
- Input Voltage AC Min: 85V
- Length: 82mm
- Line Regulation: 192mV
- Load Regulation: 300mV
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Output Current Max: 22A
- Output Power Max: 1.056kW
- Output Ripple Voltage pk-pk: 200mV
