H83K09BYA Res, 3K09, 0.10%, 250MW, Axial HOLSWORTHY - Te Connectivity

HOLSWORTHY - TE CONNECTIVITYUGS :H83K09BYA Code de commande:1751495

Prix:
Prix ​​promotionnel€3,20

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (138 unité)

Documenten en downloads

description

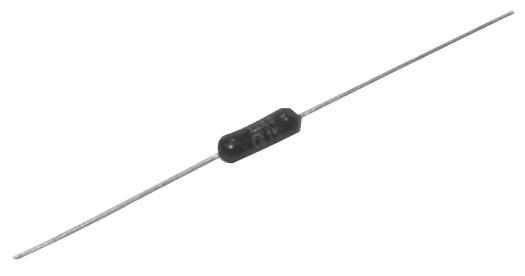

HOLSWORTHY - TE CONNECTIVITY - H83K09BYA - Through Hole Resistor, 3.09 kohm, H8, 250 mW, ± 0.1%, Axial Leaded, 350 V

  • Resistance: 3.09kohm
  • Product Range: H8 Series
  • Power Rating: 250mW
  • Resistance Tolerance: ± 0.1%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 350V
  • Resistor Element Material: Metal Film
  • Temperature Coefficient: ± 15ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Body Diameter: 2.5mm
  • Body Length: 7.2mm
  • Lead Diameter: 0.6mm
  • Lead Length: 30mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Through Hole
