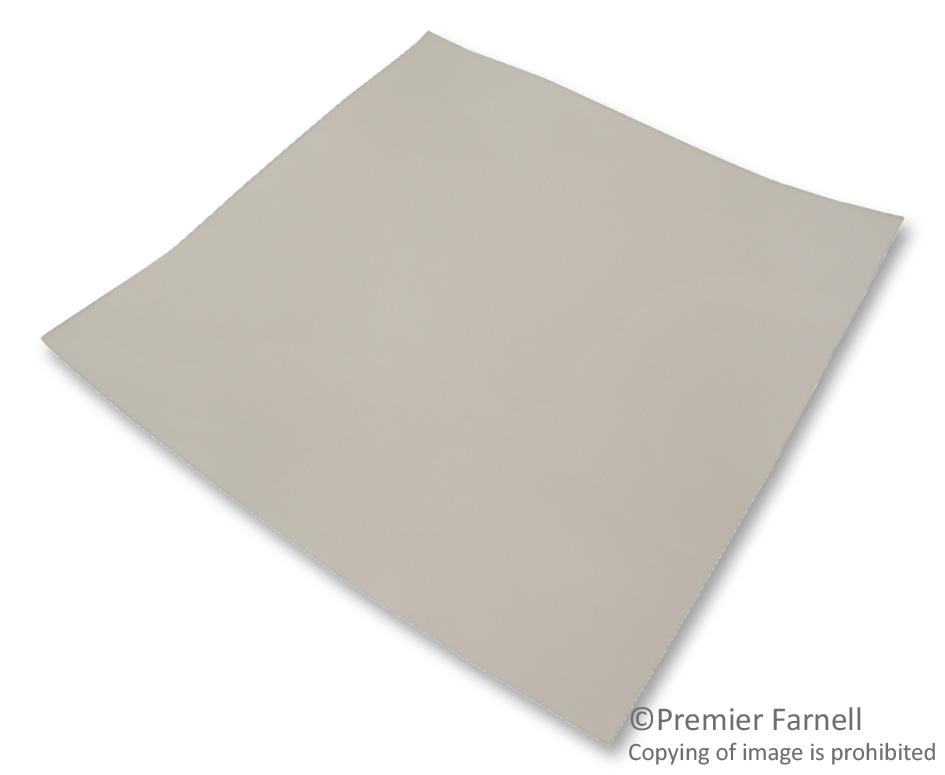

BERGQUIST - GP3000S30-0.040-02-4/4 - Thermal Insulator, .040", 4" x 4" Sheet, Gap Pad 3000 S30, 3 W/m.K, 2.5 kV, 1.016 mm, 85000 Mohm-m
- Insulator Body Material: Gap Pad 3000 S30
- Thermal Conductivity: 3W/m.K
- Breakdown Voltage Vbr: 2.5kV
- Thickness: 1.016mm
- Volume Resistivity: 85000Mohm-m
- Thermal Impedance: 0.66°C/W
- Dielectric Strength: -
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Colour: Light Blue
- Dielectric Constant: 6.0
- External Depth: 1mm
- External Width: 100mm
- Flammability Rating: UL94V-0
- Length: 100mm
- Material: Gap Pad 3000 S30
- Operating Temperature Max: 200°C
- Operating Temperature Min: -60°C
- Operating Temperature Range: -60°C to +200°C
- Overall Width: 100mm
- Resistivity: 8.5ohm/sq
- Rockwell Hardness: 30
- Specific Gravity: 3.2
- Type: Thermal Pad
