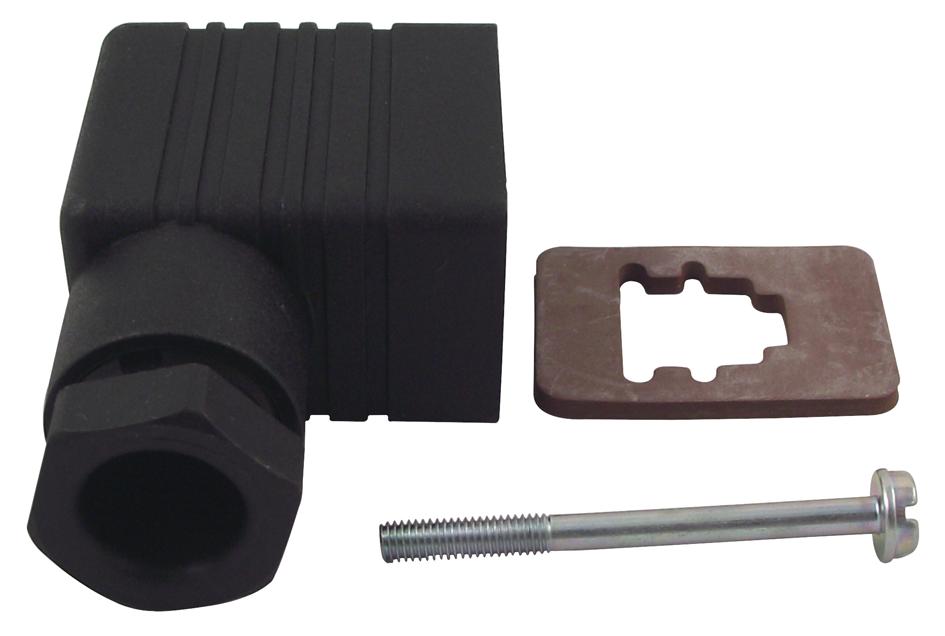

HIRSCHMANN - GMN209NJ.BLACK - Rectangular Power Connector, 2+E, 2 Contacts, Cable Mount, Screw, Receptacle
- No. of Contacts: 2Contacts
- Product Range: -
- Connector Mounting: Cable Mount
- Contact Termination Type: Screw
- Pitch Spacing: -
- Gender: Receptacle
- Contact Gender: Socket
- Contact Material: Brass
- Contact Plating: Tin Plated Contacts
- Connector Shell Size: -
- No. of Rows: -
- SVHC: Lead (27-Jun-2018)
- Approval Bodies: CSA, DSRK, SEV, UL, UR
- Body Plating: Tin
- Cable Diameter Max: 7mm
- Cable Diameter Min: 4.5mm
- Colour: Black
- Connector Type: Rectangular Power
- Contact Resistance: 4mohm
- Contact Termination: Screw
- Current Rating: 16A
- External Depth: 32mm
- External Length / Height: 51mm
- IP / NEMA Rating: IP65
- Material: Polyamide
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Standard: DIN EN 175 301-803-B
- Termination Method: Screw
- Thread Type: PG9
- Voltage Rating V DC: 250V
- Voltage Rating VAC: 250V
- Working Voltage: 250V
