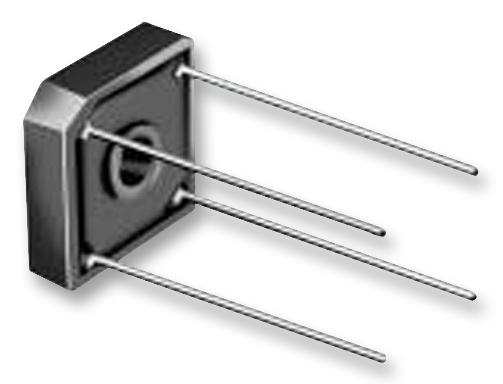

GBPC3504W Bridge Rectifier, 35A, 400V, GBPC ONSEMI

ONSEMIUGS :GBPC3504W Code de commande:1467472

Prix:
Prix ​​promotionnel€6,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (49 unité)

Documents et téléchargements

description

ONSEMI - GBPC3504W - Bridge Rectifier, Single Phase, 400 V, 35 A, Module, 4 Pins, 1.1 V

  • No. of Phases: Single Phase
  • Repetitive Reverse Voltage Vrrm Max: 400V
  • Forward Current If(AV): 35A
  • Bridge Rectifier Case Style: Module
  • Forward Voltage VF Max: 1.1V
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: GBPC3 Series
  • SVHC: Lead (27-Jun-2018)
  • Diode Mounting Type: Through Hole
  • External Depth: 29mm
  • External Length / Height: 11.23mm
  • External Width: 29mm
  • Forward Surge Current Ifsm Max: 400A
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Pd: 83.3W
  • RMS Input Voltage: 280V
  • Termination Type: Screw
