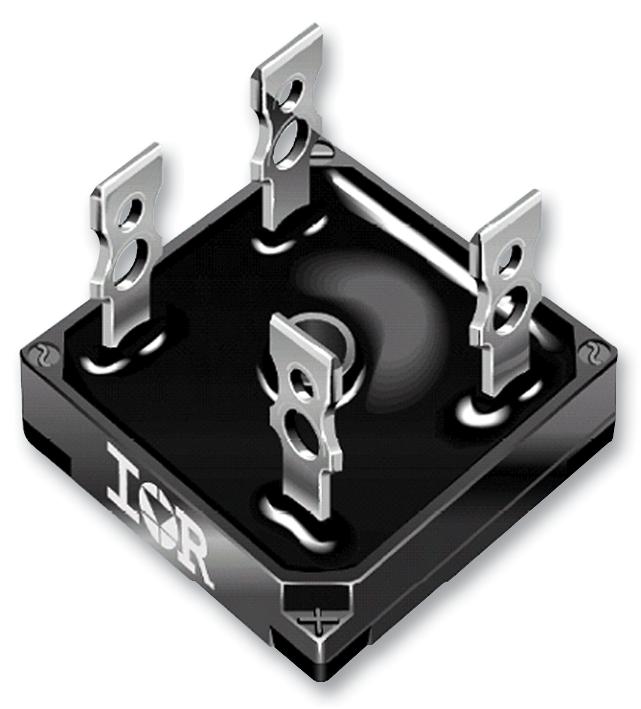

ONSEMI - GBPC1510 - Bridge Rectifier, Single Phase, 1 kV, 15 A, Module, 4 Pins, 1.1 V
- No. of Phases: Single Phase
- Repetitive Reverse Voltage Vrrm Max: 1kV
- Forward Current If(AV): 15A
- Bridge Rectifier Case Style: Module
- Forward Voltage VF Max: 1.1V
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: GBPC1 Series
- SVHC: Lead (27-Jun-2018)
- Diode Mounting Type: Quick Connect
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Pd: 83.3W
- Termination Type: Screw
