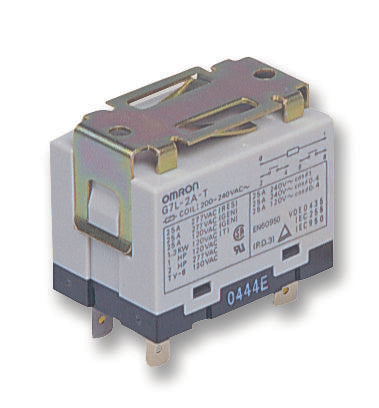

G7L-1A-T DC12 RELAY, SPST-NO, 277VAC, 25A OMRON

OMRONUGS :G7L-1A-T DC12 Code de commande:9949658

Prix:
Prix ​​promotionnel€17,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

OMRON - G7L-1A-T DC12 - Power Relay, SPST-NO, 12 VDC, 25 A, G7L, Panel Mount, Non Latching

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 25A
  • Product Range: G7L Series
  • Relay Mounting: Panel
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: Silver Alloy
  • Coil Resistance: 75ohm
  • Approvals & Standards: CSA, IEC, UL
  • Coil Current: 158mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 30A
  • Contact Current Max: 30A
  • Contact Voltage AC Max: 220V
  • Contact Voltage AC Nom: 220V
  • DC Coil Power: 1.9W
  • External Depth: 47mm
  • External Height: 52.5mm
  • External Length / Height: 52.5mm
  • External Width: 33.5mm
  • Nom Operating Power: 1.9W
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -25°C
  • Relay Type: Power
