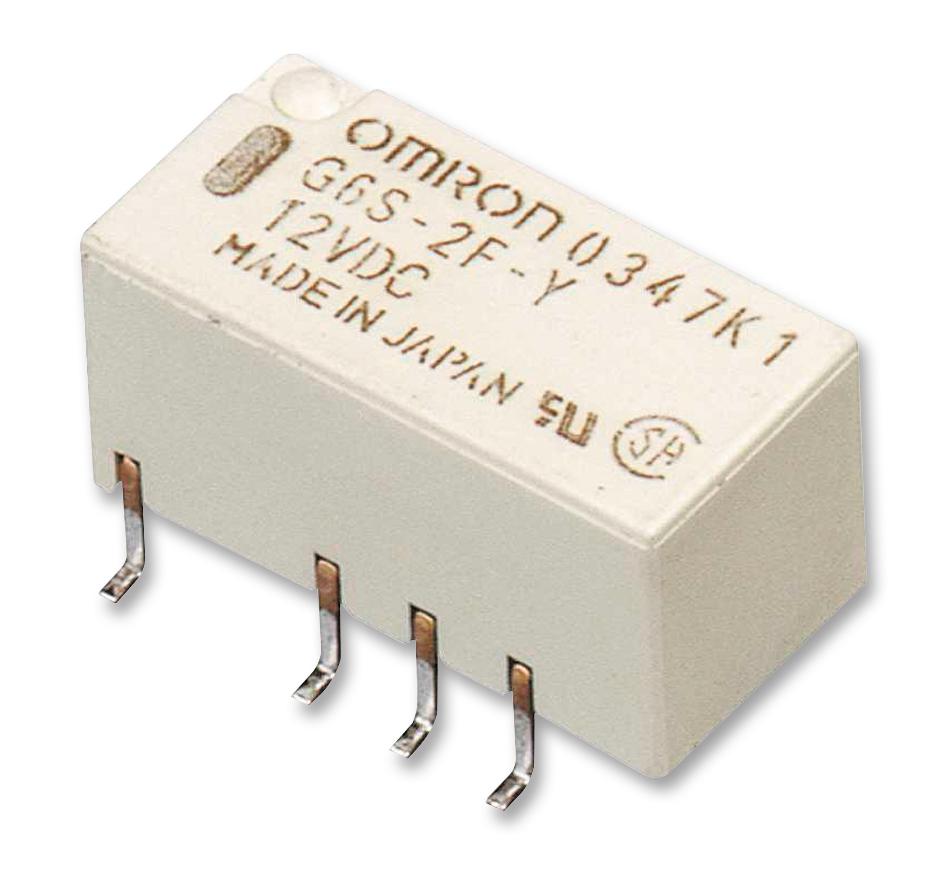

OMRON - G6SU2 DC12 - Signal Relay, 12 VDC, DPDT, 2 A, G6S, Through Hole, Latching Single Coil
- Coil Voltage: 12VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: G6S Series
- Relay Mounting: Through Hole
- Coil Type: Latching Single Coil
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Coil Resistance: 1.44kohm
- Approvals & Standards: CSA, UL
- Coil Current: 8.3mA
- Coil Power Continuous: 100mW
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 2A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 220V
- External Depth: 14.8mm
- External Height: 9.2mm
- External Width: 7.3mm
