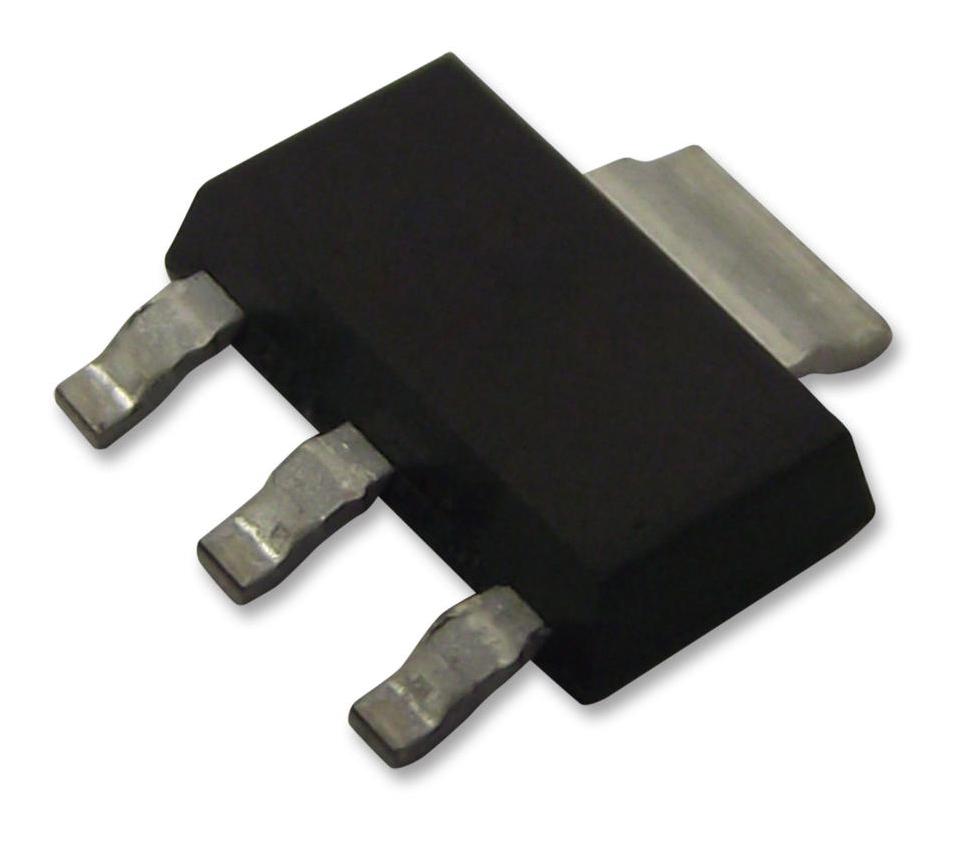

DIODES INC. - FZT705 - Bipolar (BJT) Single Transistor, Darlington, PNP, 120 V, 2 A, 2 W, SOT-223, Surface Mount
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 120V
- Transition Frequency ft: 160MHz
- Power Dissipation Pd: 2W
- DC Collector Current: -2A
- DC Current Gain hFE: 3000hFE
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Av Current Ic: 2A
- Collector Emitter Saturation Voltage Vce(on): -1.3V
- Continuous Collector Current Ic Max: 2A
- Current Ic Continuous a Max: 2A
- Current Ic hFE: 1A
- Device Marking: FZT705
- External Depth: 7.3mm
- External Length / Height: 1.7mm
- External Width: 6.7mm
- Gain Bandwidth ft Typ: 160MHz
- Hfe Min: 3000
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 2W
- SMD Marking: FZT705
- Transistor Type: Darlington
- Voltage Vcbo: 140V
