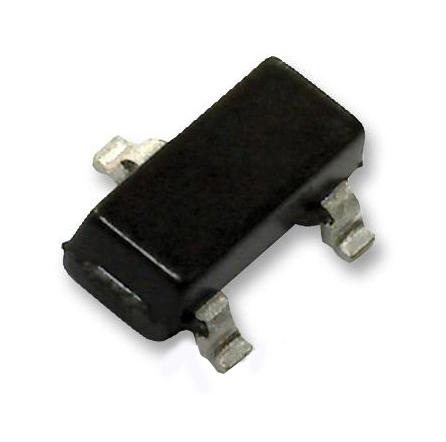

DIODES INC. - FMMT717 - Bipolar (BJT) Single Transistor, PNP, 12 V, 2.5 A, 625 mW, SOT-23, Surface Mount
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 12V
- Transition Frequency ft: 110MHz
- Power Dissipation Pd: 625mW
- DC Collector Current: -2.5A
- DC Current Gain hFE: 475hFE
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 220mV
- Continuous Collector Current Ic Max: 2.5A
- Current Ic Continuous a Max: 2.5A
- Current Ic hFE: 100mA
- Device Marking: MT717
- Gain Bandwidth ft Min: 80MHz
- Gain Bandwidth ft Typ: 110MHz
- Hfe Min: 100
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 625mW
- SMD Marking: 717
- Tape Width: 8mm
- Turn Off Time: 130ns
- Turn On Time: 70ns
- Voltage Vcbo: 12V
