FDCB-37P1AENTI2/1-LF Plug, D, Pcb, R/A, 37WAY Cinch Connectivity Solutions

CINCH CONNECTIVITY SOLUTIONSUGS :FDCB-37P1AENTI2/1-LF Code de commande:1114133

Prix:
Prix ​​promotionnel€120,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (235 unité)

Documents et téléchargements

description

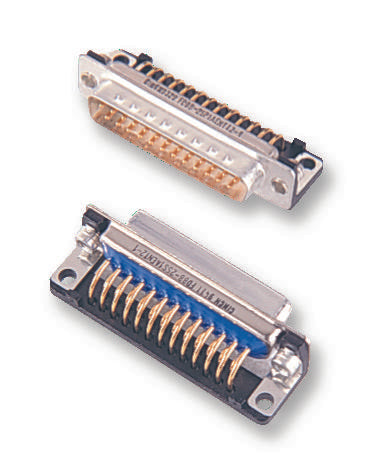

CINCH CONNECTIVITY SOLUTIONS - FDCB-37P1AENTI2/1-LF - D Sub Connector, Right Angle, Filtered, Plug, Cinch - FD, 37 Contacts, DC, Solder

  • Product Range: Cinch - FD Series
  • D Sub Shell Size: DC
  • Gender: Plug
  • No. of Contacts: 37Contacts
  • Capacitance: 1000pF
  • Connector Body Material: Steel Body
  • Contact Termination Type: Solder
  • Contact Material: Copper Alloy
  • Contact Plating: Gold over Nickel Plated Contacts
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Tin
  • Capacitance Min: 1nF
  • Case Material: Steel
  • Connector Mounting: Through Hole Mount Right Angle
  • Contact Resistance: 5mohm
  • Contact Termination: Solder
  • D Sub Connector Type: Filtered
  • DC Current Max: 5A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 100
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -55°C
  • Potting Encapsulation Material: Black epoxy resin
  • Thread Size: 4-40 NC Thread
  • Working Voltage: 200V
