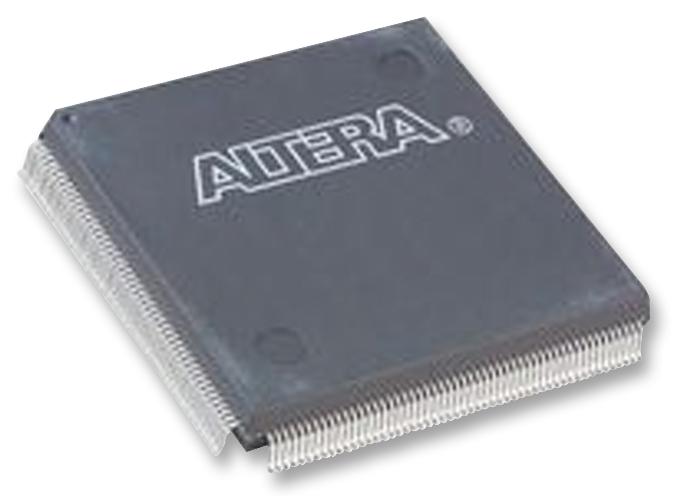

ALTERA - EP2C8Q208C8N - FPGA, Cyclone II, PLL, 138 I/O's, 320 MHz, 1.15 V to 1.25 V, QFP-208
- No. of Logic Blocks: 516
- No. of Macrocells: 8256
- FPGA Family: Cyclone II
- Logic Case Style: QFP
- No. of Pins: 208Pins
- No. of Speed Grades: 8
- Total RAM Bits: 165888
- No. of I/O's: 138I/O's
- Clock Management: PLL
- Core Supply Voltage Min: 1.15V
- Core Supply Voltage Max: 1.25V
- I/O Supply Voltage: 3.3V
- Operating Frequency Max: 320MHz
- Product Range: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (17-Dec-2015)
- Core Supply Voltage Range: 1.15V to 1.25V
- Frequency: 155.5MHz
- I/O Interface Standard: HSTL-15, HSTL-18, LVCMOS, LVTTL, SSTL-18, SSTL-2
- IC Generic Number: 2C8Q208
- IC Temperature Range: Commercial
- Logic Function Number: 2C8Q208
- Logic IC Base Number: 2
- Logic IC Function: FPGA
- Operating Temperature Max: 85°C
- Operating Temperature Min: 0°C
- Operating Temperature Range: 0°C to +85°C
- Programmable Logic Type: FPGA
- Supply Voltage Max: 1.89V
- Supply Voltage Min: 1.71V
- Termination Type: Surface Mount Device
