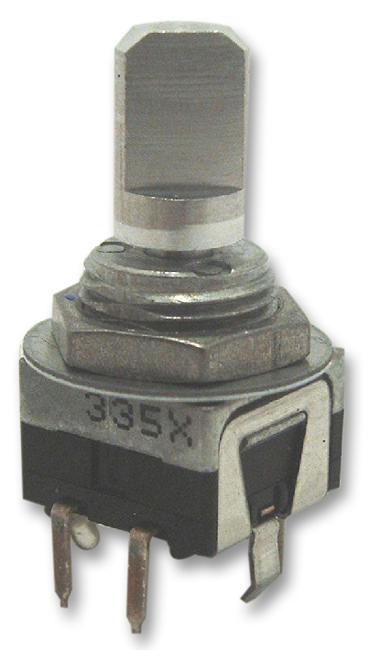

EM11B16140A4 Encoder, 16 Det, 16PPR+SW, 11mm Alps Alpine

ALPS ALPINEUGS :EM11B16140A4 Code de commande:1520818

Prix:
Prix ​​promotionnel€23,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (357 unité)

Documents et téléchargements

description

ALPS ALPINE - EM11B16140A4 - Rotary Encoder, Magnetic, Incremental, 16 PPR, 16 Detents, Vertical, With Push Switch

  • Supply Voltage Min: -
  • Supply Voltage Max: 5V
  • No. of Channels: 2Channels
  • Rotational Speed Max: -
  • Product Range: -
  • SVHC: No SVHC (20-Jun-2016)
  • Connector Type: Pin
  • Encoder Resolution: 16
  • External Depth: 10.8mm
  • External Length / Height: 7.5mm
  • External Width: 11mm
  • Insulation Resistance: 100Mohm
  • No. of Detents: 16
  • No. of Pulses Per Revolution: 16
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Operating Temperature Range: -30°C to +85°C
  • Pulse Output Count: 16
  • Rotational Life Cycles: 1000000
  • Shaft Diameter: 6mm
  • Shaft Length: 7mm
  • Supply Voltage Range: 4.75V to 5.25V
  • Supply Voltage V DC: 5V
  • Torque: 10mN-m
  • Type: Incremental Encoder
