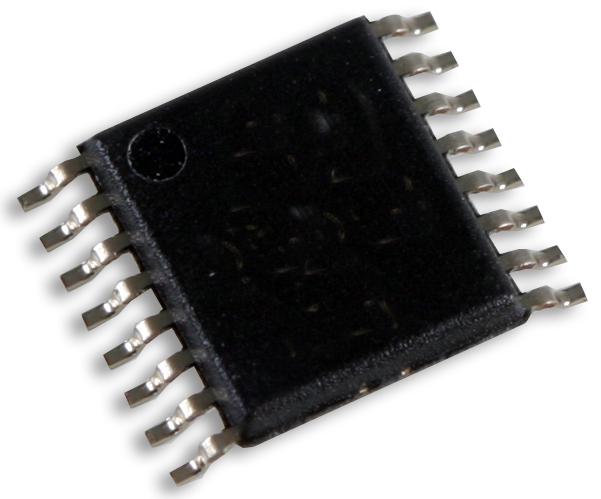

RENESAS - EL7457CUZ - MOSFET Driver Quad, Non-Inverting, 4.5V-18V supply, 2A peak out, 4.5 Ohm output, QSOP-16
- Driver Configuration: -
- Peak Output Current: 2A
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 18V
- Driver Case Style: QSOP
- No. of Pins: 16Pins
- Input Delay: 14.5ns
- Output Delay: 2ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (07-Jul-2017)
- Base Number: 7457
- Device Type: MOSFET Driver
- Fall Time tf: 13ns
- Module Configuration: Non Inverting
- No. of Channels: 4Channels
- No. of Outputs: 4Outputs
- Operating Temperature Range: -40°C to +85°C
- Output Current + Max: 2A
- Output Resistance: 4.5ohm
- Output Voltage: 16.5V
- Rise Time: 13.5ns
- Supply Voltage Range: 4.5V to 18V
- Termination Type: Surface Mount Device
