EEUFK1E152L Cap, 1500µF, 25V, 20% Panasonic

PANASONICUGS :EEUFK1E152L Code de commande:1744945

Prix:
Prix ​​promotionnel€2,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (62 unité)

Documents et téléchargements

description

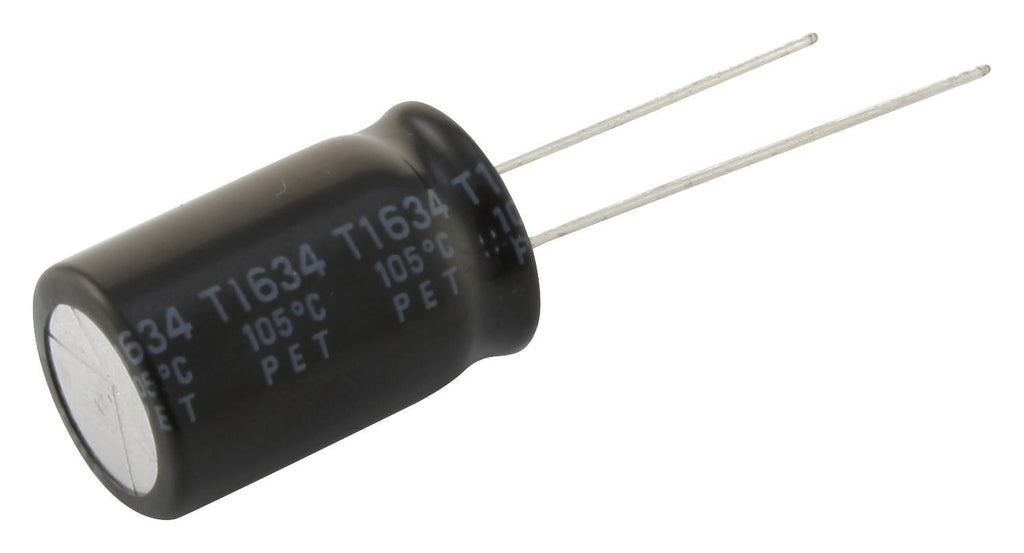

PANASONIC - EEUFK1E152L - Electrolytic Capacitor, 1500 µF, 25 V, ± 20%, Radial Leaded, 4000 hours @ 105°C, Polar

  • Capacitance: 1500µF
  • Voltage Rating: 25V
  • Product Range: FK Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 10mm
  • Lead Spacing: 5mm
  • Height: 30mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 105°C
  • Lifetime @ Temperature: 4000 hours @ 105°C
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 30mm
  • Impedance: 0.025ohm
  • Impedance Frequency: 100kHz
  • Impedance Temperature: 20°C
  • Lead Diameter: 0.6mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +105°C
  • Ripple Current @ 105°C to 125°C: 2140mA
  • Ripple Current Frequency: 100kHz
  • Ripple Current Temperature: 105°C
