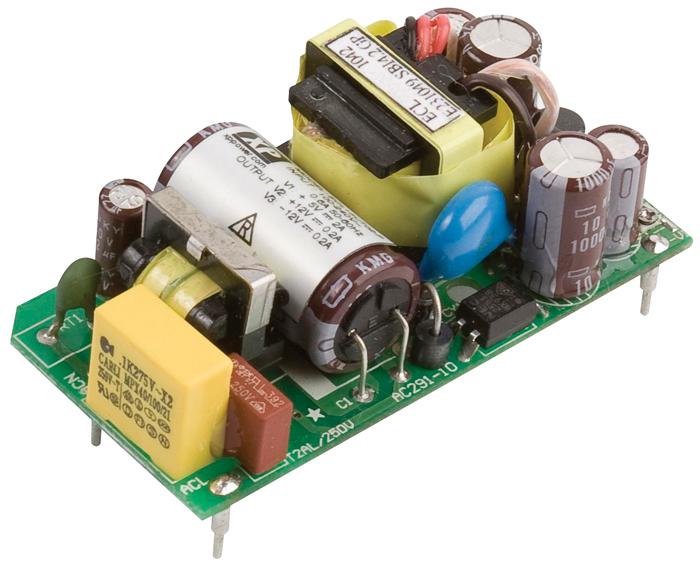

ECL25US12-P PSU, 25W, 12V, MINI, PCB MOUNT XP POWER
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
ECL25US12-P PSU, 25W, 12V, MINI, PCB MOUNT XP POWER

ECL25US12-P PSU, 25W, 12V, Mini, Pcb Mount XP Power

XP POWERUGS :ECL25US12-P Code de commande:1580467
Prix:
€55,21

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

Fiche produit

description

XP POWER - ECL25US12-P - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 25 W, 12 V, 2.1 A

  • No. of Outputs: 1 Output
  • Output Power Max: 25W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 2.1A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Power Supply Output Type: Adjustable, Fixed
  • Input Voltage VAC: 85V AC to 264V AC
  • Width: 34.6mm
  • Height: 26.7mm
  • Depth: 75.2mm
  • Product Range: ECL Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, cUL, EN, UL
  • Efficiency: 80%
  • External Depth: 26.7mm
  • External Length / Height: 76.2mm
  • External Width: 35.6mm
  • Input Current: 0.4mA
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 85V
  • Inrush Current: 20A
  • Isolation Voltage: 3000V
  • Length: 26.7mm
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Output Current Max: 2.1A
  • Output Ripple Voltage pk-pk: 120mV
  • Peak Output Current: 2.73A
  • Power Rating: 25W
  • Power Supply Type: Switch Mode
  • Supply Frequency Max: 63Hz
  • Supply Frequency Min: 47Hz
