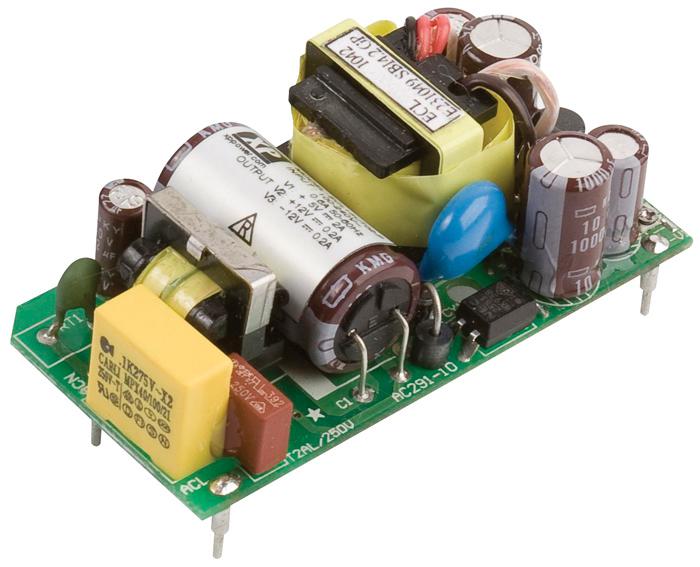

XP POWER - ECL25US03-P - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 20 W, 3.3 V, 6 A
- No. of Outputs: 1 Output
- Output Power Max: 20W
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 6A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Adjustable, Fixed
- Input Voltage VAC: 85V AC to 264V AC
- Width: 34.6mm
- Height: 26.7mm
- Depth: 75.2mm
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, cUL, EN, UL
- Efficiency: 75%
- External Depth: 26.7mm
- External Length / Height: 76.2mm
- External Width: 35.6mm
- Input Current: 0.4mA
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Inrush Current: 20A
- Isolation Voltage: 3000V
- Length: 26.7mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Output Current Max: 6A
- Output Ripple Voltage pk-pk: 50mV
- Peak Output Current: 7.8A
- Power Rating: 20W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
