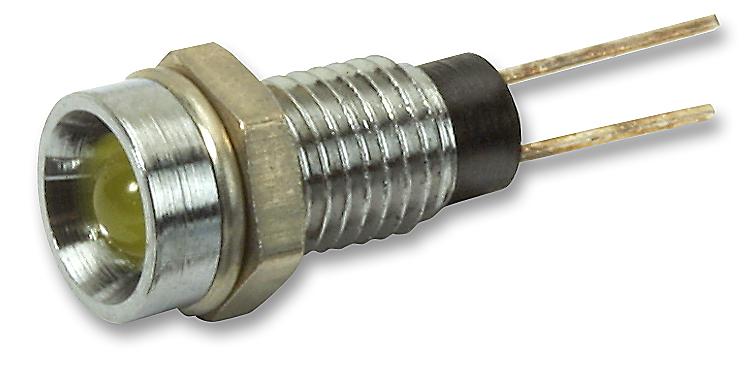

BULGIN LIMITED - DX1116/YL - LED Panel Mount Indicator, Brass Bezel, Yellow, 2 VDC, 6.1 mm, 20 mA, 2.5 mcd, Not Rated
- LED Colour: Yellow
- Operating Voltage: 2VDC
- Mounting Hole Dia: 6.1mm
- Forward Current If: 20mA
- Luminous Intensity: 2.5mcd
- IP / NEMA Rating: Not Rated
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Bezel Diameter: 7.6mm
- Bulb Size: 4mm
- Current If Luminous Intensity: 20mA
- External Diameter: 7.6mm
- External Length / Height: 14mm
- Fixing Hole Diameter: 6.2mm
- Forward Current If Max: 20mA
- Forward Voltage: 2V
- Forward Voltage VF Max: 2.1V
- LED / Lamp Size: 4mm
- Lens Shape: Dome
- Luminous Intensity Typ: 5mcd
- Operating Temperature Max: 80°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +80°C
- PIV Max: 3V
- Peak Forward Current: 25mA
- Thread Pitch: 0.75mm
- Thread Size: M6
- Voltage Vf Typ: 2.1V
