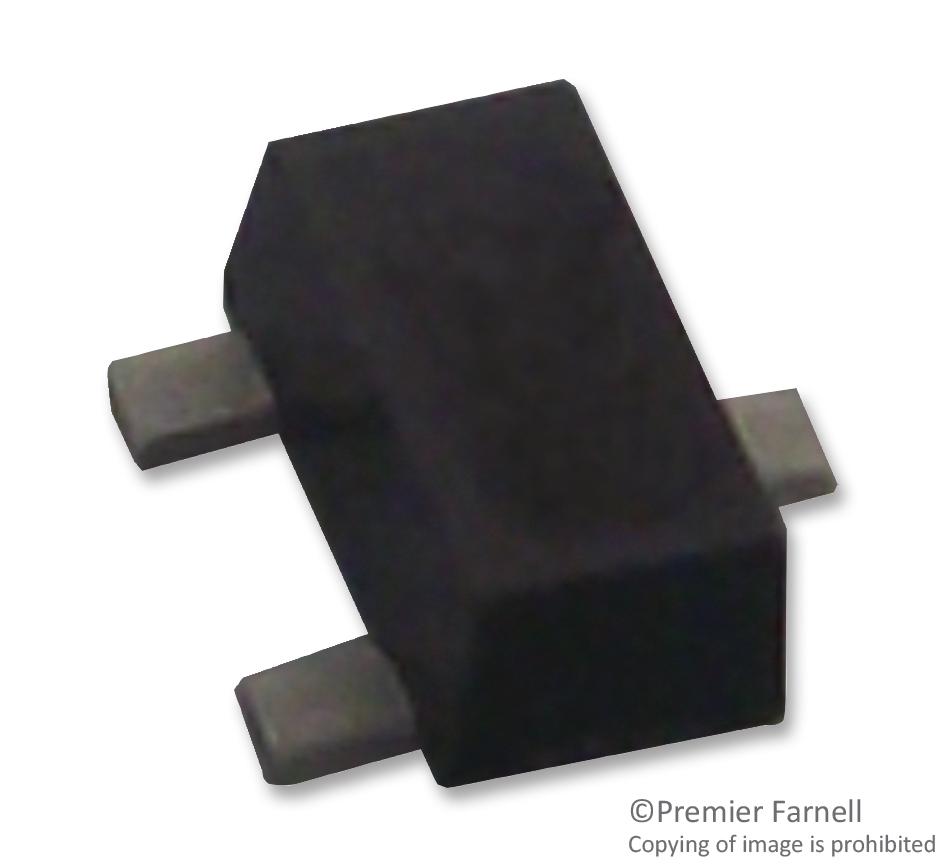

ROHM - DTC143EKAT146 - Bipolar Pre-Biased / Digital Transistor, Digital, Single NPN, 50 V, 100 mA, 4.7 kohm, 4.7 kohm
- Digital Transistor Polarity: Single NPN
- Collector Emitter Voltage V(br)ceo: 50V
- Continuous Collector Current Ic: 100mA
- Base Input Resistor R1: 4.7kohm
- Base-Emitter Resistor R2: 4.7kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: SOT-346
- No. of Pins: 3 Pin
- Product Range: DTC143E Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Current Ic Continuous a Max: 100mA
- DC Collector Current: 100mA
- DC Current Gain hFE: 30hFE
- Gain Bandwidth ft Typ: 250MHz
- Hfe Min: 30
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Pd: 200mW
- Termination Type: Surface Mount Device
- Transistor Case Style: SOT-346
- Transistor Polarity: NPN
- Transistor Type: General Purpose
- Transition Frequency ft: 250MHz
