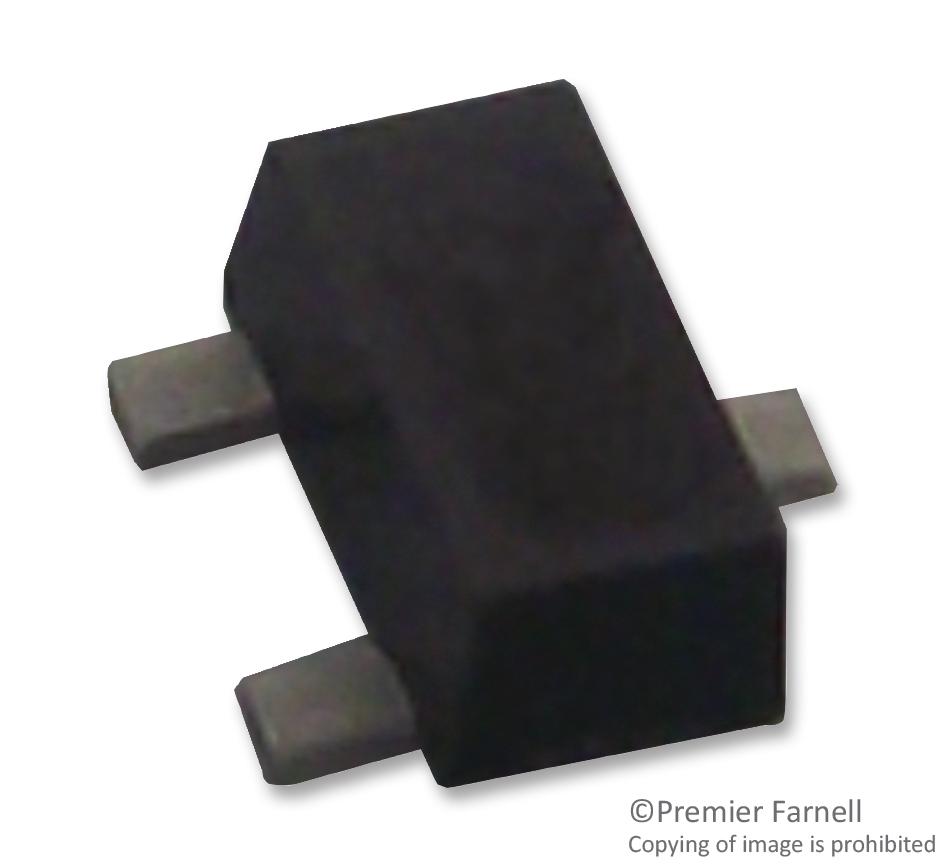

ROHM - DTA115EUAT106 - Bipolar Pre-Biased / Digital Transistor, Digital, Single PNP, -50 V, -100 mA, 100 kohm, 100 kohm
- Digital Transistor Polarity: Single PNP
- Collector Emitter Voltage V(br)ceo: -50V
- Continuous Collector Current Ic: -100mA
- Base Input Resistor R1: 100kohm
- Base-Emitter Resistor R2: 100kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: SOT-323
- No. of Pins: 3 Pin
- Product Range: DTA115E Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Current Ic Continuous a Max: 100mA
- DC Collector Current: 100mA
- DC Current Gain hFE: 82hFE
- Gain Bandwidth ft Typ: 250MHz
- Hfe Min: 82
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Pd: 200mW
- Termination Type: Surface Mount Device
- Transistor Case Style: SOT-323
- Transistor Polarity: PNP
- Transistor Type: General Purpose
- Transition Frequency ft: 250MHz
