IXYS SEMICONDUCTOR - DSA120C150QB - Small Signal Schottky Diode, Dual Common Cathode, 150 V, 60 A, 800 mV, 600 A, 175 °C
- Diode Configuration: Dual Common Cathode
- Repetitive Reverse Voltage Vrrm Max: 150V
- Forward Current If(AV): 60A
- Forward Voltage VF Max: 800mV
- Forward Surge Current Ifsm Max: 600A
- Operating Temperature Max: 175°C

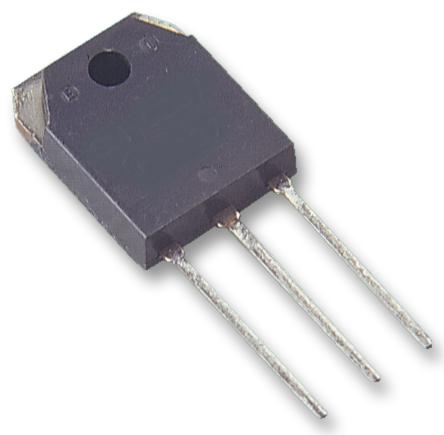

- Diode Case Style: TO-3P
- No. of Pins: 3Pins
- Product Range: DSA12 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Current Ifsm: 600A
- Current Ir Max: 2mA
- Diode Type: Schottky
- Forward Voltage: 800mV
- Junction Temperature Tj Max: 175°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Power Dissipation Ptot Max: 375W
- Termination Type: Through Hole
