description

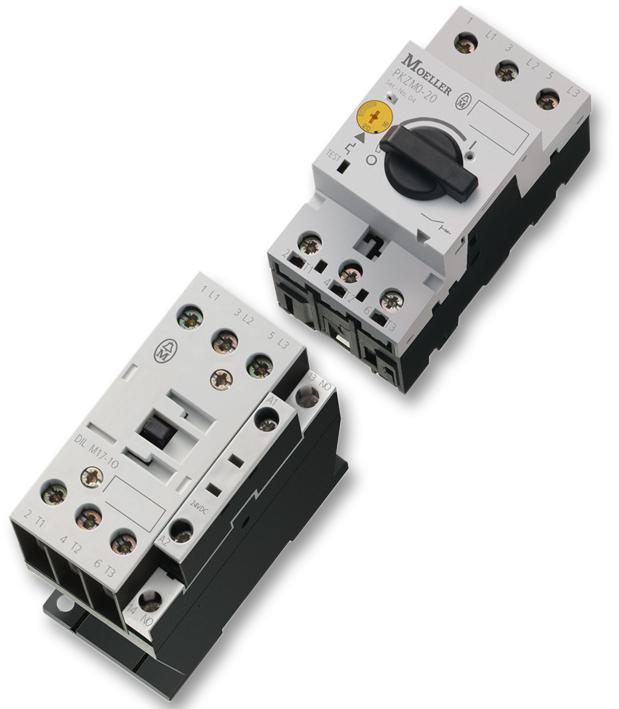

EATON MOELLER - DILM32-10(230V50HZ,240V60HZ) - Contactor, DIN Rail, Panel, 690 V, 3PST-NO, 3 Pole, 15 kW
- Load Current Inductive: -
- Relay Mounting: DIN Rail, Panel
- Operating Voltage: 690V
- Contact Configuration: 3PST-NO
- No. of Poles: 3 Pole
- Switching Power AC3: 15kW
- Switching Current AC1: 43A
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: -
- Switching Power AC1: -
- Load Current Resistive: -
- Switching Current AC3: 32A
- Product Range: DILM
- SVHC: No SVHC (17-Dec-2015)
- Coil Frequency Max: 60Hz
- Coil Operating Frequency Min: 50Hz
- Coil Voltage: 240V
- Coil Voltage Max: 240VAC
- Coil Voltage Min: 230VAC
- Contact Current: 32A
- Contact Current AC Max: 32A
- Contact Voltage AC Max: 400V
- Contact Voltage VAC: 690V
- Dielectric Voltage Coil to Contact: 440VAC
- Dielectric Voltage Contact to Contact: 440VAC
- External Depth: 138mm
- External Height: 85mm
- External Length / Height: 85mm
- External Width: 45mm
- Main Contact Current AC3 Max: 32A
- Power Rating: 15kW
- Relay Terminals: Screw
- Relay Type: Contactor
