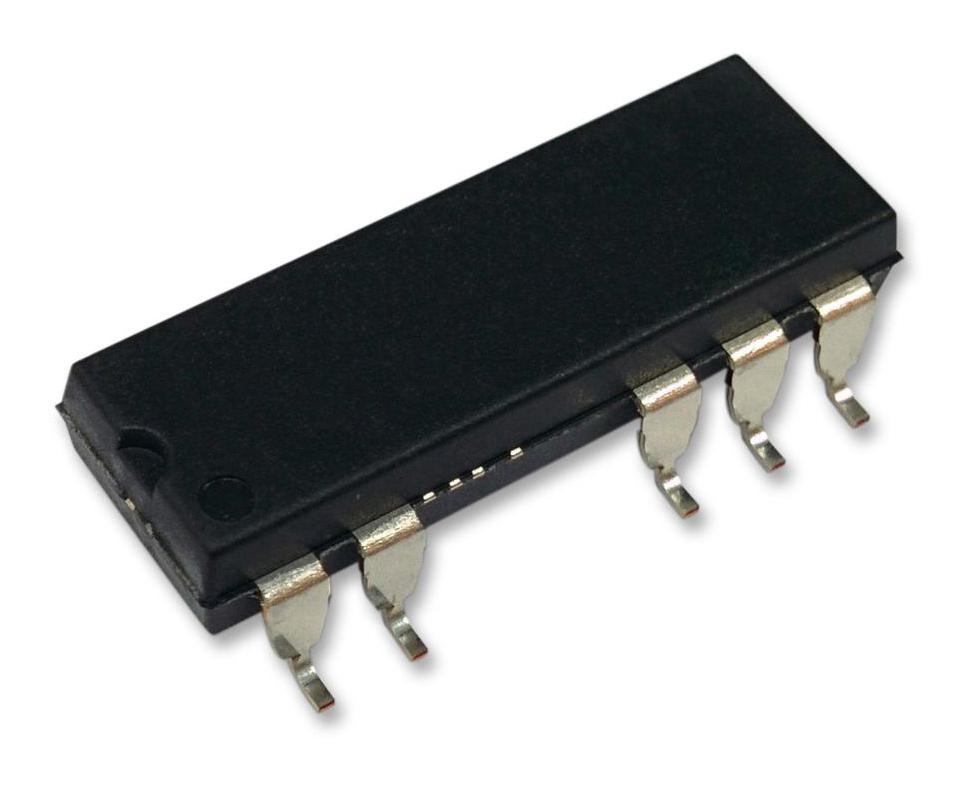

DCP012405BP-U Ic, DC/DC Converter, 1W, SMD Texas Instruments

TEXAS INSTRUMENTSUGS :DCP012405BP-U Code de commande:3009708

Prix:
Prix ​​promotionnel€23,38

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10 unité)

description

TEXAS INSTRUMENTS - DCP012405BP-U - Isolated Surface Mount DC/DC Converter, ITE, 1:1, 1 W, 1 Output, 5 V, 200 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 200mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: -
  • Input Voltage DC Min: -
  • Input Voltage DC Max: 5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: Surface Mount DIP
  • DC / DC Converter Mounting: Surface Mount Device
  • Width: 7.611mm
  • Height: 5.33mm
  • Depth: 19.69mm
  • SVHC: No SVHC (15-Jan-2019)
  • Frequency: 800kHz
  • No. of Outputs: 1Outputs
  • No. of Pins: 7Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Output Voltage Max: 5V
  • Power Rating: 1W
  • Primary Input Voltage: 24V
  • Supply Voltage Max: 26.4V
  • Supply Voltage Min: 21.6V
  • Voltage Regulator Type: Isolated Converter
