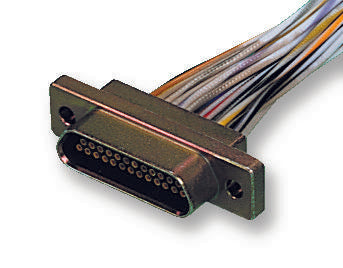

CINCH CONNECTIVITY SOLUTIONS - DCCM-51P6E518.0B-LF - Micro D Cable Assembly, Micro-D Plug to Free End, 51 Ways, 1.4 ft, 450 mm, Dura-Con DCCM
- Connector to Connector: Micro-D Plug to Free End
- No. of Positions: 51Ways
- Cable Length - Imperial: 1.4ft
- Cable Length - Metric: 450mm
- Jacket Colour: -
- Product Range: Dura-Con DCCM Series
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Cadmium Plated, Yellow Chromate
- Cable Assembly Type: Micro D
- Cable Length: 457.2mm
- Case Material: Aluminium alloy
- Conductor Size: 26AWG
- Connector Type A: Micro-D Plug, 51 Way
- Connector Type B: Free End
- Contact Resistance: 8mohm
- Contact Termination: Solder
- Current Rating: 3A
- Flammability Rating: UL94V-0
- Gender: Plug
- Insulation Resistance: 5000Mohm
- Insulator Material: DAP (Diallyl Phthalate)
- Lead Length: 450mm
- No. of Contacts: 51Contacts
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Proof Voltage: 600V
- Voltage Rating V DC: 200V
- Voltage Rating VAC: 200V
