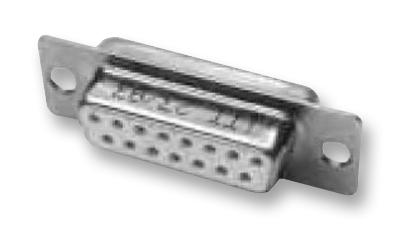

DA-15S-A197 Connector, Solder Cup, Socket, 15 Way ITT Cannon

ITT CANNONUGS :DA-15S-A197 Code de commande:1760330

Prix:
Prix ​​promotionnel€20,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (141 unité)

Documents et téléchargements

description

ITT CANNON - DA-15S-A197 - D Sub Connector, DB15, Standard, Receptacle, DA, 15 Contacts, DA, Solder Cup

  • No. of Contacts: 15Contacts
  • Gender: Receptacle
  • Contact Termination Type: Solder Cup
  • D Sub Shell Size: DA
  • Product Range: DA Series
  • Connector Body Material: Steel Body
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plated Contacts
  • Body Plating: Tin
  • Connector Mounting: Cable Mount
  • Contact Resistance: 10mohm
  • Contact Termination: Solder
  • Current Rating: 5A
  • D Sub Connector Type: Standard
  • Flammability Rating: UL94V-0
  • Material: Steel
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Termination Method: Solder
  • Withstand Voltage: 1250V
