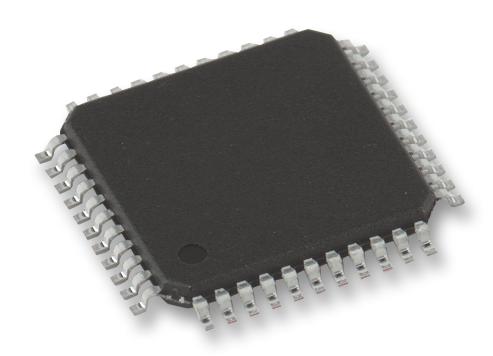

CYPRESS - INFINEON TECHNOLOGIES - CY8C29566-24AXI - 8 Bit MCU, PSOC 1 Family CY8C29x66 Series Microcontrollers, 24 MHz, 32 KB, 2 KB, 44 Pins, TQFP
- Product Range: PSOC 1 Family CY8C29x66 Series Microcontrollers
- CPU Speed: 24MHz
- Program Memory Size: 32KB
- RAM Memory Size: 2KB
- No. of Pins: 44Pins
- MCU Case Style: TQFP
- No. of I/O's: 40I/O's
- Embedded Interface Type: I2C, SPI, UART
- Supply Voltage Min: 3V
- Supply Voltage Max: 5.25V
- MCU Family: PSoC 1
- MCU Series: CY8C29x66
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (17-Dec-2015)
- Base Number: 29566
- Controller Family/Series: CY8C29xxx
- EEPROM Memory Size: 2KB
- Flash Memory Size: 32KB
- IC Generic Number: 8C29566
- Logic Function Number: 8C29566
- MPU Core Size: 8bit
- No. of PWM Channels: 16
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DAC, PWM, Timer
- Program Memory Size: 32KB
- Supply Voltage Range: 3V to 5.25V
- Termination Type: Surface Mount Device
