description

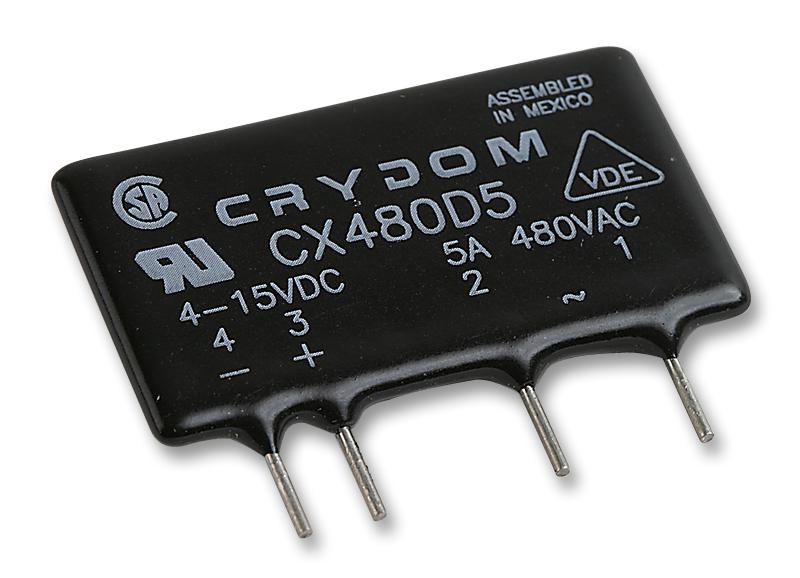

SENSATA/CRYDOM - CX480D5 - Solid State Relay, CX Series, SIP, SPST-NO, 5 A, 660 Vrms, PCB, Through Hole, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 5A
- Operating Voltage Max: 660Vrms
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Zero Crossing
- Operating Voltage Min: 48Vrms
- Control Voltage Min: 4VDC
- Control Voltage Max: 15VDC
- Product Range: CX Series
- SVHC: No SVHC (07-Jul-2017)
- Blocking voltage: 1200V
- Control Current @ 5VDC: 15mA
- Control Voltage DC Max: 15VDC
- Control Voltage DC Min: 4VDC
- Control Voltage Range: 4V DC to 15V DC
- Control Voltage Type: DC
- Current Load AC Max: 5A
- External Depth: 7.6mm
- External Length / Height: 25.4mm
- External Width: 43mm
- I2t: 260s
- Input Impedance: 240ohm
- Isolation Voltage: 4kV
- Leakage Current: 0.1mA
- Load Current Min: 0.06A
- Load Current RMS Max: 5A
- Load Voltage DC Max: 660V
- Load Voltage DC Min: 48VDC
- Load Voltage Range: 48Vrms to 660Vrms
- Operating Voltage Range: 48Vrms to 660Vrms
- Output Type: SCR
- RMS Load Current Min: 0.06A
- RMS Load Voltage Max: 660V
- RMS Load Voltage Min: 48V
- Rate of Voltage Change dv / dt: 500V/µs
