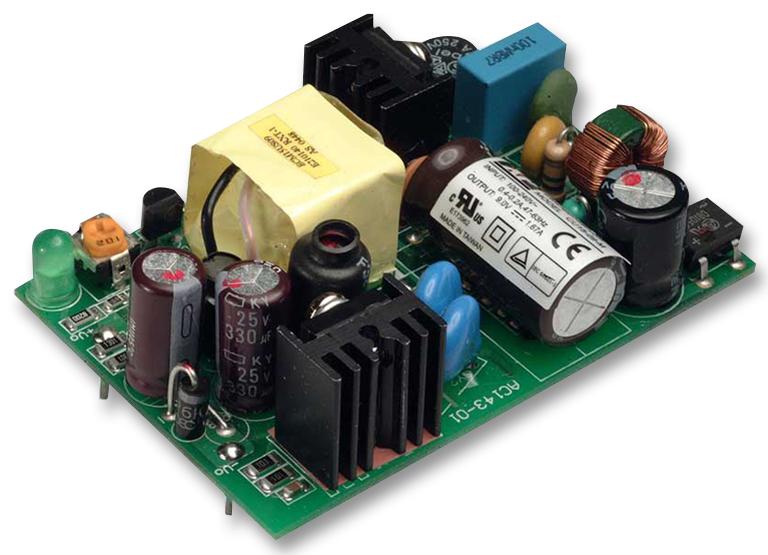

XP POWER - CU15-14 - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 15 W, 24 V, 630 mA
- No. of Outputs: 1 Output
- Output Power Max: 15W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 630mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Adjustable, Fixed
- Input Voltage VAC: 85V AC to 264V AC
- Width: 48mm
- Height: 23mm
- Depth: 48mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CSA, cUL, EN, UL
- External Depth: 69.9mm
- External Length / Height: 23mm
- External Width: 48mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Length: 69.9mm
- No. of Outputs: 1Outputs
- Output Current Max: 630mA
- Peak Current: 0.95A
- Power Rating: 15W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 85V
- Supply Voltage Typ: 110V AC, 230V AC
