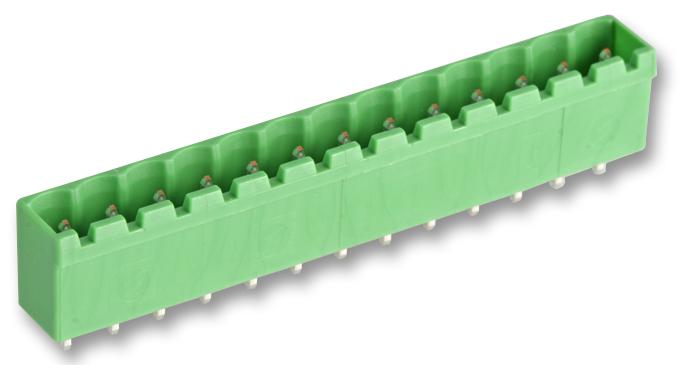

CAMDENBOSS - CTB9308/12 - Terminal Block, Header, Header, 5.08 mm, 12 Ways, 12 A, 320 V, Through Hole Vertical
- Pitch Spacing: 5.08mm
- No. of Positions: 12Ways
- Wire Size (AWG): -
- Conductor Area CSA: -
- Wire Connection Method: -
- Rated Current: 12A
- Rated Voltage: 320V
- Product Range: CTB9308 Series
- SVHC: No SVHC (15-Jan-2019)
- Block Orientation: Through Hole Vertical
- Cable Diameter Max: 2.5mm
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Brass
- Contact Plating: Nickel Plated Contacts
- Gender: Header
- Insulation Resistance: 5Mohm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -20°C
- Working Voltage: 380V
