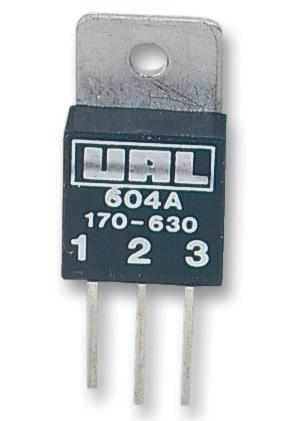

UNITED AUTOMATION - CSR1504A - Power Regulator, CE Approved, 60 Hz, 15 A, 207 V to 253 V
- On State Current Max: 15A
- Supply Voltage Min: 207VAC
- Supply Voltage Max: 253VAC
- Isolation Voltage: -
- Supply Frequency: 60Hz
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Approval Bodies: CE
- External Depth: 6.4mm
- External Length / Height: 27.7mm
- External Width: 16mm
- Fixing Hole Diameter: 10mm
- For Use With: Conventional Resistive Heating Elements, Inductive Loads
- Holding Current Min: 30mA
- Hysteresis: 5%
- IC Generic Number: 15-04
- Operating Temperature Range: 0°C to +70°C
- Output Voltage Max: 400V
- RMS Current (Irms): 15A
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Supply Voltage AC Max: 240V
- Supply Voltage AC Min: 220V
- Supply Voltage Range: 99Vrms to 121Vrms / 2.7Vrms to 253Vrms
- Surge Current: 150A
- Withstand Voltage: 1600V
