description

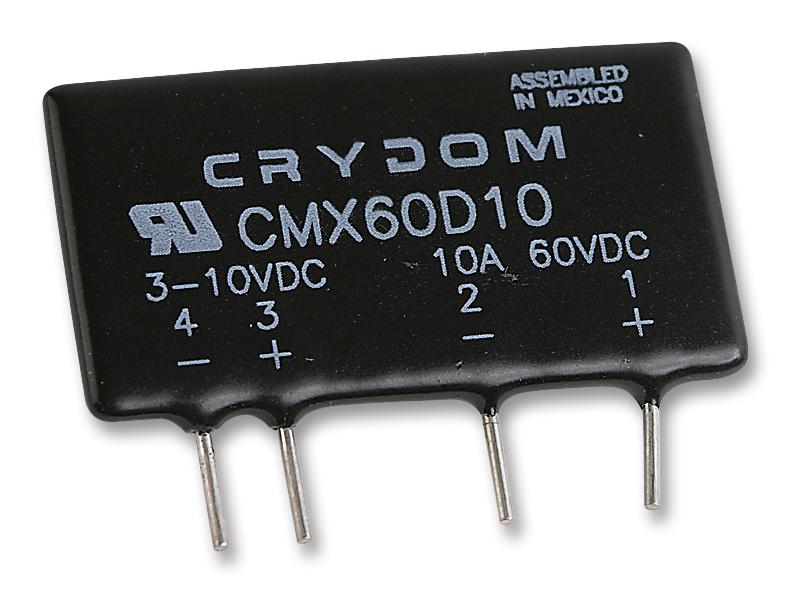

SENSATA/CRYDOM - CMX60D10 - Solid State Relay, CMX Series, DIP, DC Output, SPST-NO, 10 A, 60 VDC, PCB, Through Hole, DC Switch
- Contact Configuration: SPST-NO
- Load Current: 10A
- Operating Voltage Max: 60VDC
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: DC Switch
- Operating Voltage Min: 0VDC
- Control Voltage Min: 3VDC
- Control Voltage Max: 10VDC
- Product Range: CMX Series
- SVHC: No SVHC (07-Jul-2017)
- Control Current @ 5VDC: 15mA
- Control Voltage DC Max: 10VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 10V DC
- Control Voltage Type: DC
- External Depth: 7.6mm
- External Length / Height: 25.4mm
- External Width: 43mm
- Forward Current If: 15mA
- Input Current: 15mA
- Input Impedance: 300ohm
- Input Voltage: 3V DC to 10V DC
- Insulation Resistance: 1000Mohm
- Isolation Voltage: 2.5kV
- Leakage Current: 0.1mA
- Load Current Max: 10A
- Load Current Min: 0A
- Load Current RMS Max: 10A
- Load Voltage DC Max: 60V
- Load Voltage DC Min: 0V
- Load Voltage Max: 60VDC
- Load Voltage Range: 0V DC to 60V DC
- No. of Pins: 4Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Output Type: MOSFET
