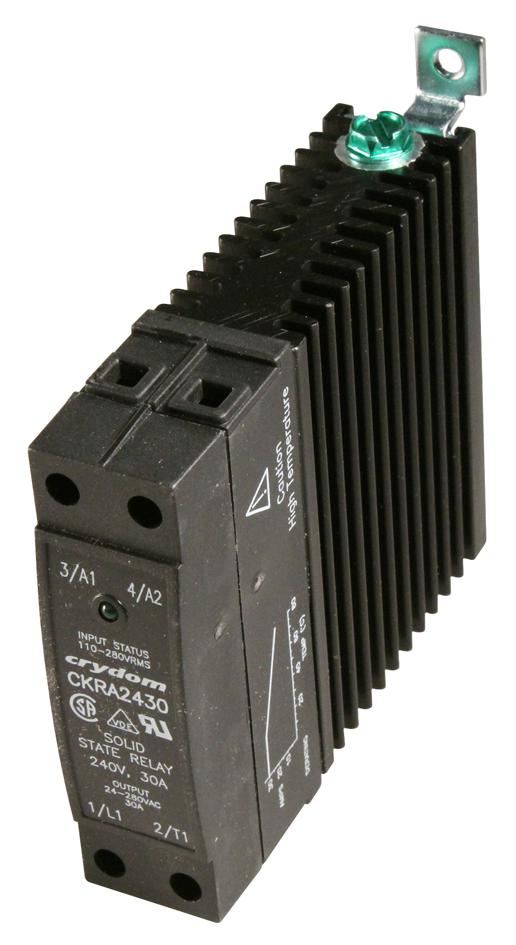

SENSATA/CRYDOM - CKRA2430 - Solid State Relay, SPST-NO, 30 A, 280 Vrms, DIN Rail, Cage Clamp, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 30A
- Operating Voltage Max: 280Vrms
- Relay Mounting: DIN Rail
- Relay Terminals: Cage Clamp
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24Vrms
- Control Voltage Min: 90VAC
- Control Voltage Max: 280VAC
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Blocking voltage: 600V
- Control Current Min: 2mA
- Control Current Typ: 4mA
- Control Voltage AC Max: 280VAC
- Control Voltage AC Min: 90VAC
- Control Voltage Range: 90V AC to 280V AC
- Control Voltage Type: AC
- External Depth: 99mm
- External Length / Height: 81.3mm
- External Width: 22.4mm
- Input Voltage Max: 280V
- Input Voltage Min: 90V
- Leakage Current: 10mA
- Load Current Max: 30A
- Load Current Min: 150mA
- Load Current RMS Max: 30A
- Operating Voltage Range: 24Vrms to 280Vrms
- Output Type: SCR
- Peak Surge Current: 1.2kA
- RMS Load Current Min: 0.15A
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 24V
- Rate of Voltage Change dv / dt: 500V/s
- Single Cycle Surge Current: 625A
- Surge Current: 625A
