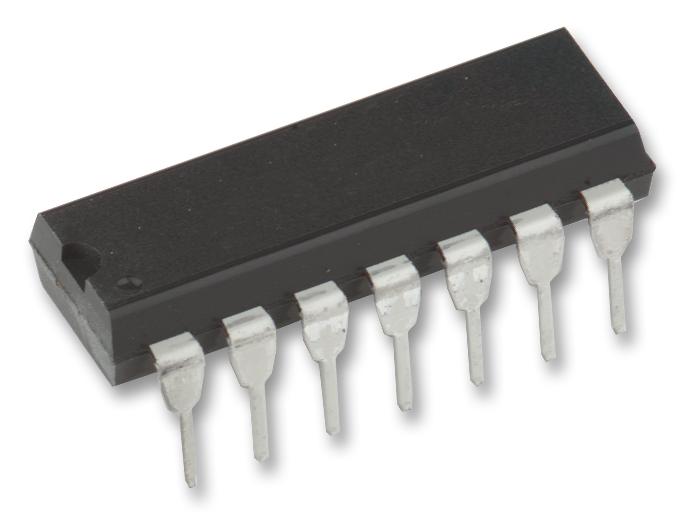

TEXAS INSTRUMENTS - CD4086BE - Logic IC, AND / OR / Inverter, 2 Inputs, 14 Pins, DIP
- Logic Family / Base Number: CD4086
- Logic Type: AND / OR / INVERTER
- Output Current: 6.8mA
- No. of Inputs: 2
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic Case Style: DIP
- No. of Pins: 14Pins
- Logic IC Family: CD4000
- Logic IC Base Number: 4086
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Logic IC Base Number: 4086
- Logic IC Function: Expandable 4-Wide 2-Input AND-OR-Invert Gate
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage Range: 3V to 18V
- Termination Type: Through Hole
