description

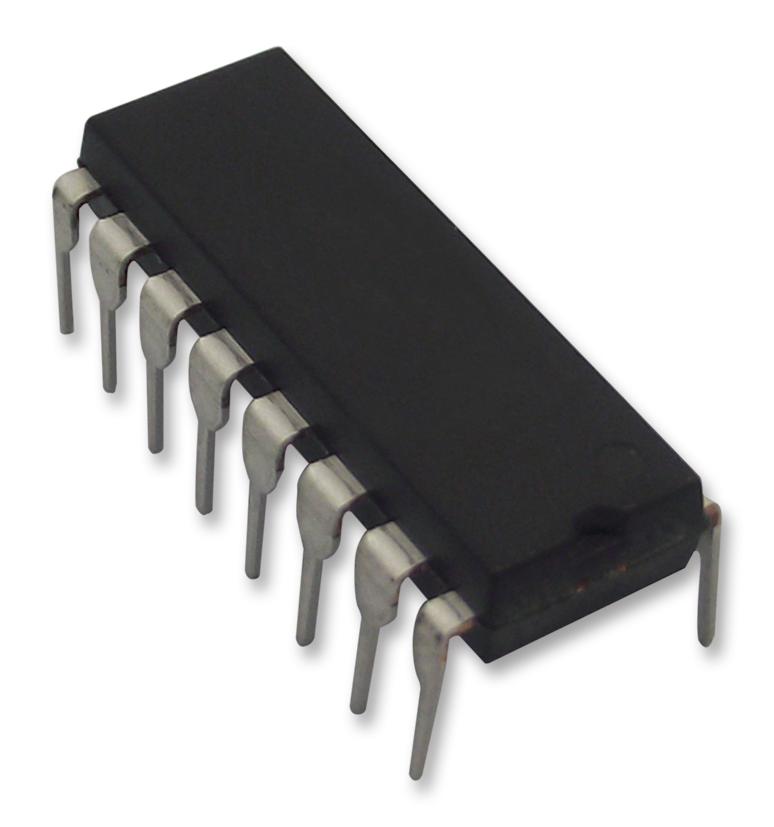

TEXAS INSTRUMENTS - CD4014BE - Shift Register, CD4014, Parallel to Serial, Serial to Serial, 1 Element, 8 bit, DIP, 16 Pins
- Logic Family / Base Number: CD4014
- Shift Register Function: Parallel to Serial, Serial to Serial
- No. of Elements: 1 Element
- No. of Bits Per Element: 8bit
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- IC Output Type: Standard
- Logic IC Family: CD4000
- Logic IC Base Number: 4014
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 4014
- Device Marking: 4014
- Frequency: 17MHz
- IC Generic Number: 4014
- Input Current Max: 1µA
- Logic IC Base Number: 4014
- Logic IC Function: 8-Stage Static Shift Register
- Logic Type: Shift Register
- No. of Elements: 1Elements
- Operating Temperature Range: -55°C to +125°C
- Power Dissipation Ptot Max: 500mW
- Supply Voltage Range: 3V to 18V
- Termination Type: Through Hole
