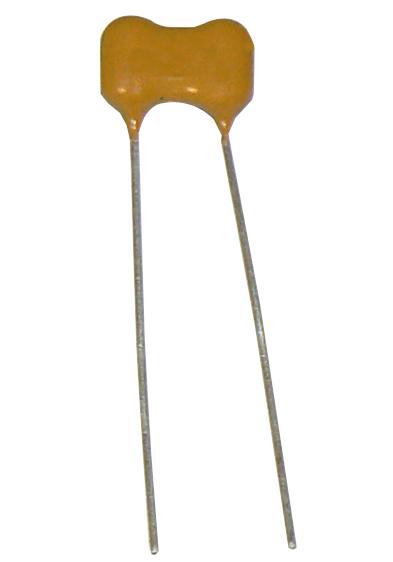

CORNELL DUBILIER - CD15ED470DO3F - Mica Capacitor, Standard Dipped, 47 pF, 500 V, ± 1%, PC Pin, 5.9 mm, Radial Leaded
- Capacitance: 47pF
- Voltage Rating: 500V
- Capacitance Tolerance: ± 1%
- Product Range: Type CD15 Series
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 5.9mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance ±: ± 1%
- Capacitor Mounting: Through Hole
- External Depth: 4.3mm
- External Length / Height: 9.1mm
- External Width: 11.4mm
- Height: 9.1mm
- Lead Diameter: 0.6mm
- Lead Length: 2.54mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 20ppm/°C
- Temperature Coefficient: -20ppm/°C to +100ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 500V
