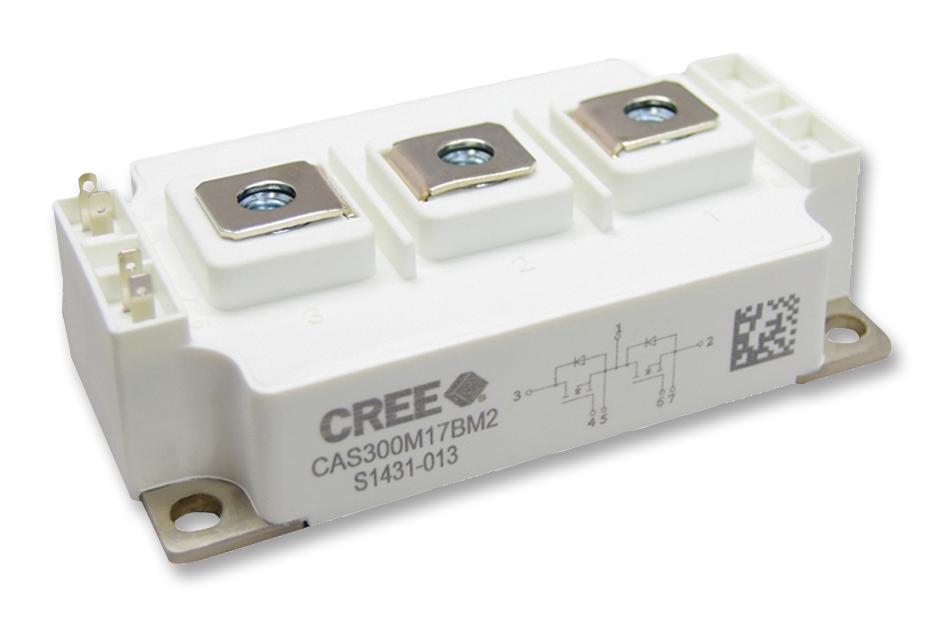

WOLFSPEED - CAS300M12BM2 - Silicon Carbide MOSFET, Half Bridge, Dual N Channel, 404 A, 1.2 kV, 0.005 ohm, Module
- Transistor Polarity: Dual N Channel
- Continuous Drain Current Id: 404A
- Drain Source Voltage Vds: 1.2kV
- On Resistance Rds(on): 0.005ohm
- Rds(on) Test Voltage Vgs: 20V
- Threshold Voltage Vgs: 2.3V
- Power Dissipation Pd: 1.66kW
- Operating Temperature Max: 150°C
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
