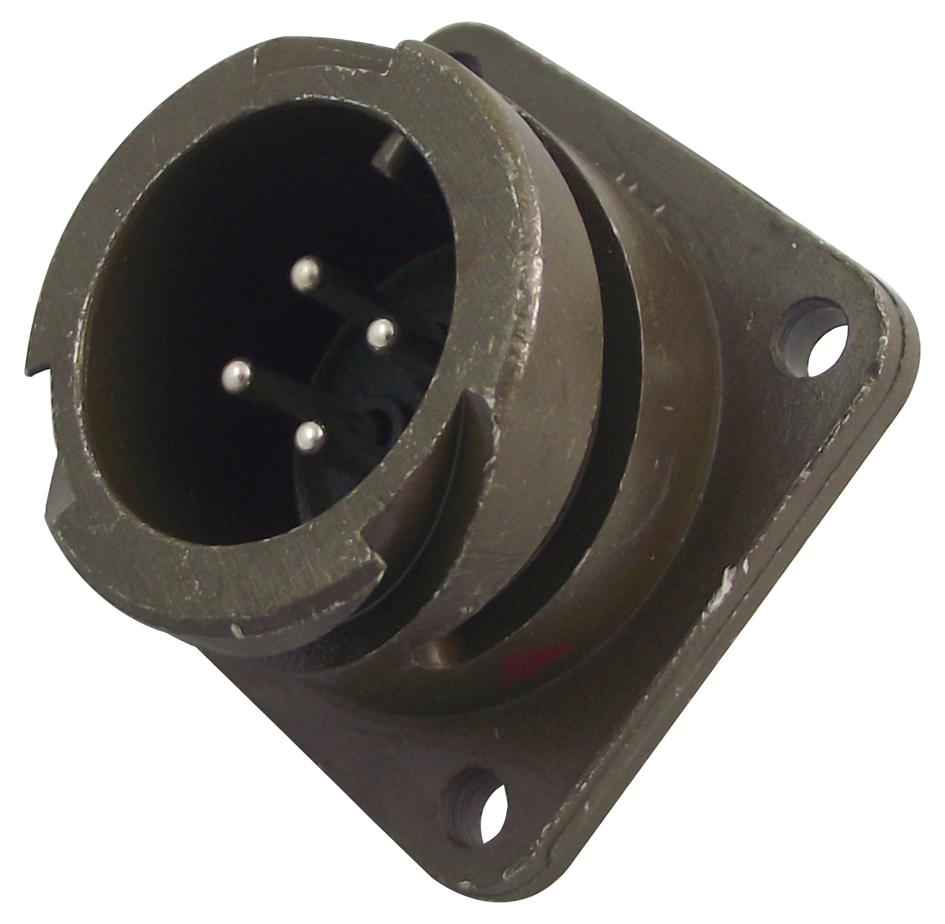

CA3102E14S-2PB Receptacle, Fixed, 4WAY ITT Cannon

ITT CANNONUGS :CA3102E14S-2PB Code de commande:3906139

Prix:
Prix ​​promotionnel€22,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

ITT CANNON - CA3102E14S-2PB - Circular Connector, CA-B, Box Mount Receptacle, 4 Contacts, Solder Pin, Reverse Bayonet, 14S-2

  • Product Range: CA-B Series
  • Circular Connector Shell Style: Box Mount Receptacle
  • No. of Contacts: 4Contacts
  • Circular Contact Type: Solder Pin
  • Coupling Style: Reverse Bayonet
  • Insert Arrangement: 14S-2
  • Connector Body Material: Aluminium Alloy Body
  • Connector Body Plating: Olive Drab Chromate over Cadmium
  • Contact Material: Copper Alloy
  • Contact Plating: Silver
  • Insert Rotation: N
  • Service Class: Environmentally Sealed
  • Equivalent Military Specification: MIL-DTL-5015 Series
  • Body Plating: Olive Drab Chromate
  • Current Rating: 13A
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 100
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Size: 16
  • Standard: MIL-C-5015
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 200V
  • Wire Size AWG Max: 16AWG
  • Wire Size AWG Min: 20AWG
  • Working Voltage: 200V
