C503B-Gas-CBOF0791 LED, 5mm, Green Cree LED

CREE LEDUGS :C503B-GAS-CBOF0791 Code de commande:1648984

Prix:
Prix ​​promotionnel€0,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (540 unité)

Documents et téléchargements

description

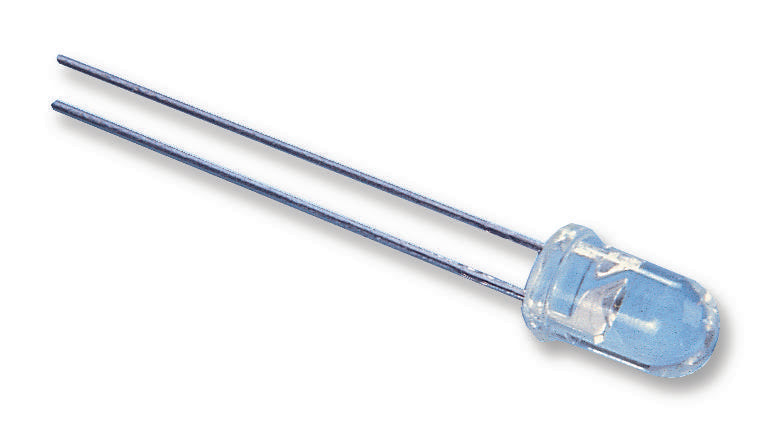

CREE LED - C503B-GAS-CBOF0791 - LED, Green, Through Hole, T-1 3/4 (5mm), 20 mA, 3.2 V, 535 nm

  • LED Colour: Green
  • LED Mounting: Through Hole
  • LED Case Size: T-1 3/4 (5mm)
  • Forward Current If: 20mA
  • Forward Voltage: 3.2V
  • Wavelength Typ: 535nm
  • Luminous Intensity: 34cd
  • Viewing Angle: 15°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • Bulb Size: T-1 3/4 (5mm)
  • Dominant Wavelength: 527nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 4V
  • LED / Lamp Size: 5mm / T-1 3/4
  • LED Type: Standard
  • Lead Diameter: 0.5mm
  • Lead Length: 25mm
  • Lead Spacing: 2.54mm
  • Lens Diameter: 5mm
  • Lens Length: 8.8mm
  • Luminous Intensity Typ: 34000mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 95°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +95°C
