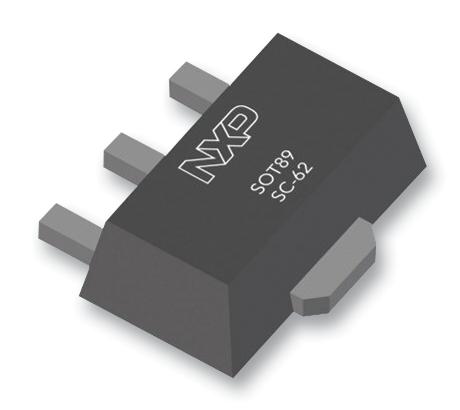

BSS87,115 MOSFET, N Ch, 200V, 400mA, Sot-89 NEXPERIA

NEXPERIAUGS :BSS87,115 Code de commande:1758089

Prix:
Prix ​​promotionnel€1,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3181 unité)

Documents et téléchargements

description

NEXPERIA - BSS87,115 - Power MOSFET, N Channel, 200 V, 400 mA, 1.6 ohm, SOT-89, Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 400mA
  • Drain Source Voltage Vds: 200V
  • On Resistance Rds(on): 1.6ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 2.8V
  • Power Dissipation Pd: 1W
  • Transistor Case Style: SOT-89
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Current Id Max: 400mA
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Surface Mount Device
  • Transistor Type: Enhancement
  • Voltage Vds Typ: 200V
  • Voltage Vgs Max: 2.8V
  • Voltage Vgs Rds on Measurement: 10V
