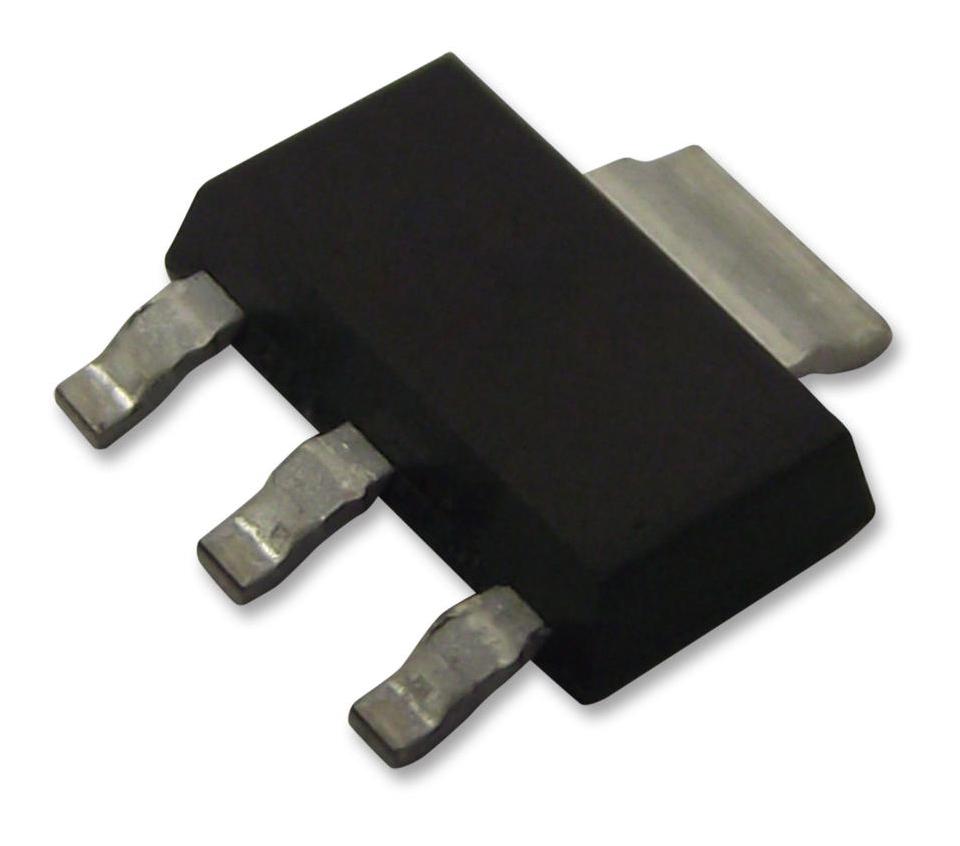

BSP220,115 MOSFET P-Ch 200V 225mA SOT223 NEXPERIA

NEXPERIAUGS :BSP220,115 Code de commande:1758083

Prix:
Prix ​​promotionnel€0,87

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (643 unité)

Documents et téléchargements

description

NEXPERIA - BSP220,115 - Power MOSFET, P Channel, 200 V, 200 mA, 10 ohm, SOT-223, Surface Mount

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: -200mA
  • Drain Source Voltage Vds: -200V
  • On Resistance Rds(on): 10ohm
  • Rds(on) Test Voltage Vgs: -10V
  • Threshold Voltage Vgs: -2.8V
  • Power Dissipation Pd: 1.5W
  • Transistor Case Style: SOT-223
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Current Id Max: -225mA
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Termination Type: Surface Mount Device
  • Transistor Type: Enhancement
  • Voltage Vds Typ: -200V
  • Voltage Vgs Max: -2.8V
  • Voltage Vgs Rds on Measurement: -10V
