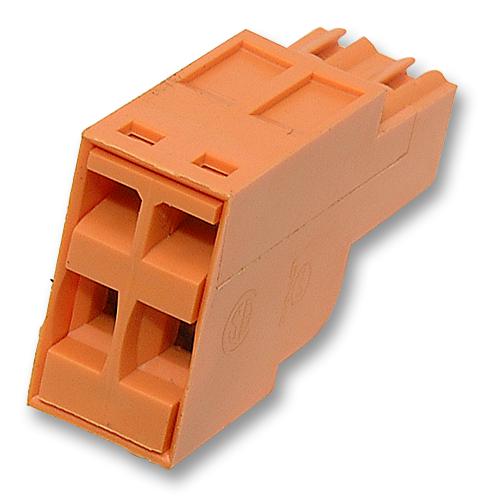

WEIDMULLER - BLZF 3.5/16 - Pluggable Terminal Block, 3.5 mm, 16 Ways, 22AWG to 14AWG, 1.5 mm², Tension Clamp, 10 A
- Pitch Spacing: 3.5mm
- No. of Positions: 16Ways
- Wire Size (AWG): 22AWG to 14AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Tension Clamp
- Rated Current: 10A
- Rated Voltage: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Colour: Orange
- Connector Mounting: Cable Mount
- Connector Type: Terminal Block, Pluggable
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- Material: Steel, Zinc Plated
- Operating Temperature Max: 100°C
- Operating Temperature Min: -20°C
- Voltage Rating VAC: 250V
- Wire Area Size Max: 1.5mm²
- Wire Area Size Min: 0.5mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 22AWG
