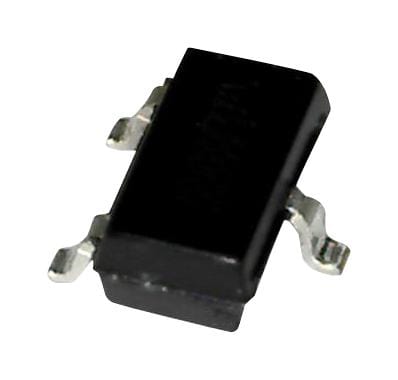

NEXPERIA - BF821,215 - Bipolar (BJT) Single Transistor, PNP, 300 V, 50 mA, 250 mW, SOT-23, Surface Mount
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -300V
- Transition Frequency ft: 60MHz
- Power Dissipation Pd: 250mW
- DC Collector Current: -50mA
- DC Current Gain hFE: 50hFE
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): -800mV
- Continuous Collector Current Ic Max: -50mA
- Current Ic Continuous a Max: -50mA
- Current Ic hFE: -25mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 60MHz
- Gain Bandwidth ft Typ: 60MHz
- Hfe Min: 50
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 250mW
- SMD Marking: 1W
- Termination Type: Surface Mount Device
- Voltage Vcbo: -300V
