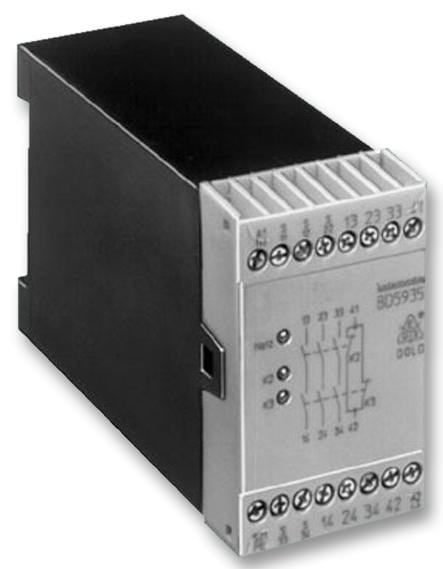

DOLD - BD 5935.48 AC 50/60HZ 230V - Safety Relay, 230 VAC, 3PST-NO, SPST-NC, BD 5935, DIN Rail, 5 A, Screw
- Coil Voltage: 230VAC
- Contact Configuration: 3PST-NO, SPST-NC
- Product Range: BD 5935 Series
- Relay Mounting: DIN Rail
- Contact Current: 5A
- Relay Terminals: Screw
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Material: -
- IP Rating: IP20, IP40
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: BG, CSA, UL
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 5A
- Contact Current Max: 5A
- Contact Voltage AC Max: 230V
- External Depth: 121mm
- External Height: 74mm
- External Length / Height: 74mm
- External Width: 45mm
- Height: 74mm
- Operating Temperature Max: 55°C
- Operating Temperature Min: -15°C
- Supply Frequency: 50Hz
- Switch Current Max: 10A
- Switching Current Max: 10A
- Type: 0045453
