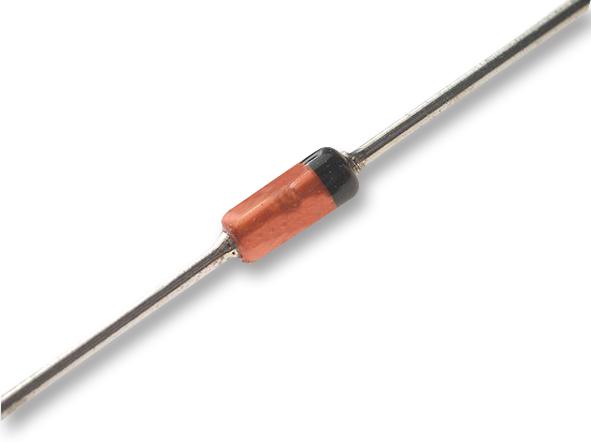

NEXPERIA - BAV21,113 - Small Signal Diode, Single, 250 V, 250 mA, 1.25 V, 50 ns, 1 A
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 250V
- Forward Current If(AV): 250mA
- Forward Voltage VF Max: 1.25V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 1A
- Operating Temperature Max: 175°C
- Diode Case Style: DO-204AH
- No. of Pins: 2Pins
- Product Range: BAV21 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Alternate Case Style: SOD-27
- Application Code: HS
- Current If @ Vf: 200mA
- Current Ifsm: 9A
- Device Marking: BAV21
- Forward Current If Max: 200mA
- Forward Voltage: 1.2V
- Junction Temperature Tj Max: 175°C
- Peak Forward Current: 250mA
- Power Dissipation Ptot Max: 400mW
- Termination Type: Axial Leaded
