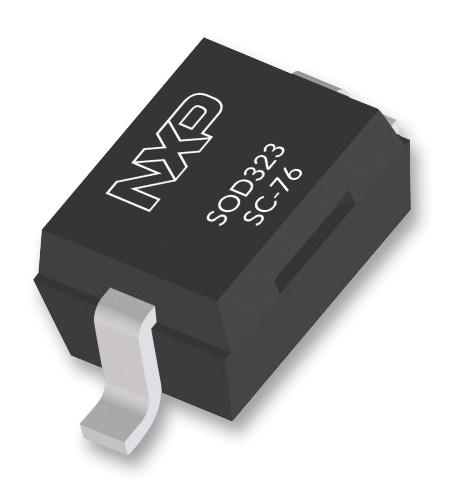

NEXPERIA - BAT760,115 - Schottky Rectifier, 20 V, 1 A, Single, SOD-323, 2 Pins, 550 mV
- Repetitive Reverse Voltage Vrrm Max: 20V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Diode Case Style: SOD-323
- No. of Pins: 2Pins
- Forward Voltage VF Max: 550mV
- Forward Surge Current Ifsm Max: 5A
- Operating Temperature Max: 125°C
- Product Range: BAT760 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Alternate Case Style: SC-76
- Current If @ Vf: 5A
- Current Ifsm: 5A
- Diode Type: Schottky
- Forward Voltage: 550mV
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Semiconductor Technology: Si
