BAT43 Diode, Schottky, 0.2A, 30V, DO-35 STMICROELECTRONICS

STMICROELECTRONICSUGS :BAT43 Code de commande:9801448

Prix:
Prix ​​promotionnel€0,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4286 unité)

Documents et téléchargements

description

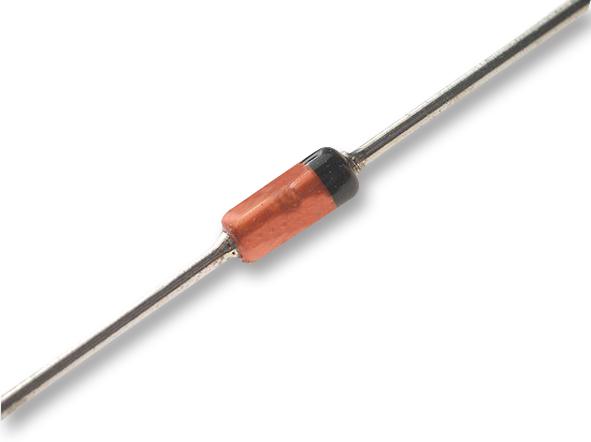

STMICROELECTRONICS - BAT43 - Small Signal Schottky Diode, Single, 30 V, 200 mA, 1 V, 4 A, 125 °C

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 30V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 1V
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 125°C
  • Diode Case Style: DO-204AH
  • No. of Pins: 2Pins
  • Product Range: BAT43 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alternate Case Style: SOD-27
  • Current If @ Vf: 15mA
  • Current Ifsm: 4A
  • Device Marking: BAT43
  • Diode Type: Schottky
  • External Diameter: 1.85mm
  • External Length / Height: 4.25mm
  • Forward Voltage: 450mV
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Reverse Recovery Time trr Max: 5ns
  • Semiconductor Technology: Si
