B82724J2402N001 Filter, Common Mode Choke, 3.3mH, 4A EPCOS

EPCOSUGS :B82724J2402N001 Code de commande:1219114

Prix:
Prix ​​promotionnel€6,11

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (256 unité)

Documents et téléchargements

description

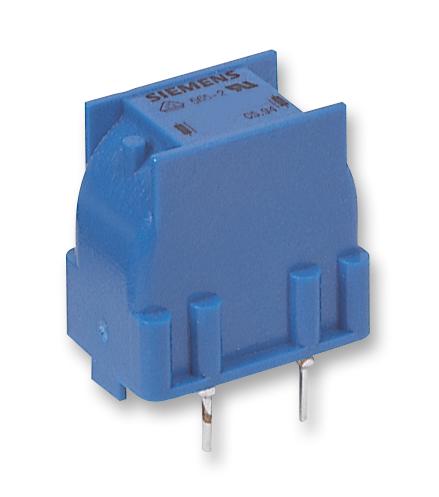

EPCOS - B82724J2402N001 - Choke, Power Line, Double, Ring Core, 3.3 mH, 4 A, B82724J Series

  • Inductance: 3.3mH
  • Rated Current: 4A
  • Product Range: B82724J Series
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Category: VDE 565-2
  • Climatic Category: 40/125/56
  • Core Material: Ferrite
  • DC Current Max: 4A
  • DC Current Rating: 4A
  • DC Resistance Max: 0.066ohm
  • External Depth: 31.3mm
  • External Length / Height: 33.2mm
  • External Width: 18.5mm
  • Flammability Rating: UL94V-0
  • Height: 33.2mm
  • Inductance Tolerance: ± 30%
  • Inductor Case Style: Through Hole
  • Inductor Type: Common / Asymmetrical
  • Lead Spacing: 12.5mm
  • No. of Pins: 4Pins
  • Row Pitch: 15mm
  • Voltage Rating VAC: 250V
