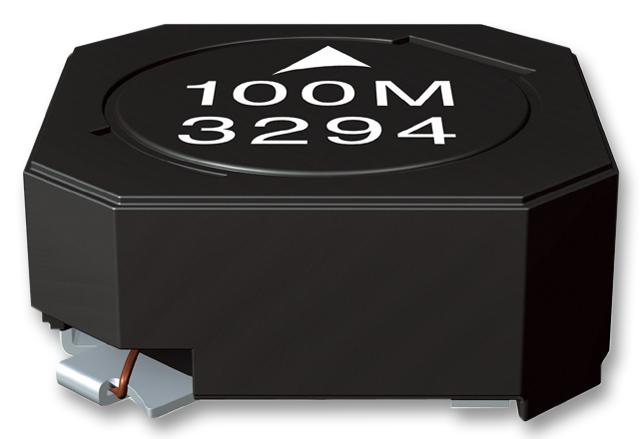

EPCOS - B82464G4684M000 - Power Inductor (SMD), 680 µH, 420 mA, Shielded, 460 mA, B82464G4, 10.4mm x 10.4mm x 4.8mm
- Inductance: 680µH
- RMS Current (Irms): 420mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 460mA
- Product Range: B82464G4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 1.3ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Rating: 420mA
- Inductor Case Style: SMD
- Reel Quantity: 750
