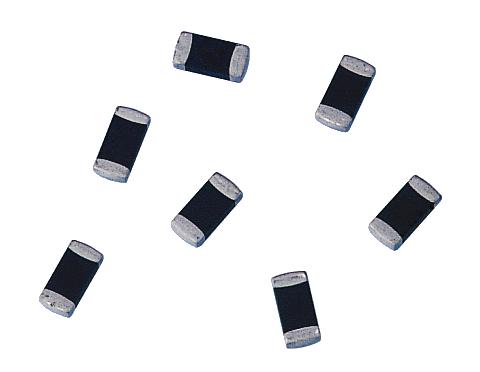

EPCOS - B72500T0140K060 - TVS Varistor, 14 V, 18 V, CT, 40 V, 0603 [1608 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 14V
- Voltage Rating V DC: 18V
- Product Range: CT Series
- Clamping Voltage Vc Max: 40V
- Varistor Case Style: 0603 [1608 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 30A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 200mJ
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- Capacitance: 100pF
- Clamping Current Max: 1A
- Clamping Voltage: 40V
- Clamping Voltage @ 8/20µs Max: 40V
- Operating Temperature Range: -55°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 30A
- Power Dissipation Ptot Max: 0.003W
- Suppressor Type: Varistor
- Surge Current: 30A
- Transient Energy: 0.2J
- Varistor Voltage: 22V
- Varistor Voltage @ 1mA: 19.8V
- Varistor Voltage @ 1mA Max: 24.2V
- Varistor Voltage Tolerance +: 10%
- Varistor Voltage Tolerance -: 10%
